    24 Core ADSS Fiber Optic Cable G652D Self Supporting Aerial Fiber Cable

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : ADSS
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100km/day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    24 Core ADSS Fiber Optic Cable G652D Self Supporting Aerial Fiber Cable


    24Core Adss Optical Aerial G652D Fibre Self Supporting Outdoor Fibra Optica Cable


    Product Description

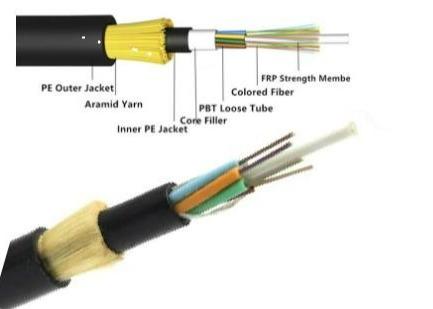

    ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.


    Characteristic


    1. All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.

    2. Large number of fiber cores, light weight, can be laying with the power line, saving resources.

    3. Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.

    4. Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

    5. Double jacket, PE/AT outer sheath

    6. Large span, the maximum span exceeds 1000 meters

    7. Life expectancy greater than 30 years


    Specifications

    Diameter

    (mm)

    Weight

    (kg/km)

    Normal tension

    (kN)

    Max.tension

    (kN)

    Breaking strength

    (kN)

    Section area of tensile element
    (mm2)
    elastic modulus
    (kN/mm2)

    thermal expansion

    ×10-6/K

    PE out sheathAT out sheath
    11.81171241.54104.67.61.8
    12.01211292.256157.68.31.5
    12.31261343.082010.359.451.3
    12.61331413.6102413.810.81.2
    12.81381454.5123014.311.81.0
    13.11451535.4153618.413.60.9
    13.51551636.75184522.016.40.6
    14.41771869.0266032.219.10.1
    14.618219110.5287033.019.60.1
    14.819520412.75348540.020.10.1

    Cable Performance Parameter
    Span meter200300400
    Related Strength Tension(RTS)17.5 kn20.6 kn28 kn
    Max Allowable Tension(MAT)6.9 kn8.2 kn11.5 kn
    Allowable Crush ResistanceLong Term: 1100 n/100mmLong Term: 1100 n/100mmLong Term: 1100 n/100mm
    Short Term: 2200 n/100mmShort Term: 2200 n/100mmShort Term: 2200 n/100mm
    Minimum Bending RadiusOperating: 220 mmOperating: 220 mmOperating: 220 mm
    Installlation: 360 mmInstalllation: 360 mmInstalllation: 360 mm
    Temperature RangeOperating: -40 /+70℃Operating: -40 /+70℃Operating: -40 / +70℃
    Installlation: -15 / +60℃Installlation: -15 / +60℃Installlation: -15 / +60℃
    Out Sheath MaterialElectrical Resistance AT (Borealis material 6081) Sheath
    Noteice accretion 5MM,weed speed:30M/S

    Application

    High altitude erection
    Pipe shaft laying
    Power overhead

    Mine shaft laying
    Directly buried laying
    Building laying


    24 Core ADSS Fiber Optic Cable G652D Self Supporting Aerial Fiber Cable

    Why Choose Us?



    Packing


    24 Core ADSS Fiber Optic Cable G652D Self Supporting Aerial Fiber Cable

    24 Core ADSS Fiber Optic Cable G652D Self Supporting Aerial Fiber Cable
