Outdoor Self Supporting Aerial Overhead 12 core ADSS Fiber Optical Cable

▌Description:

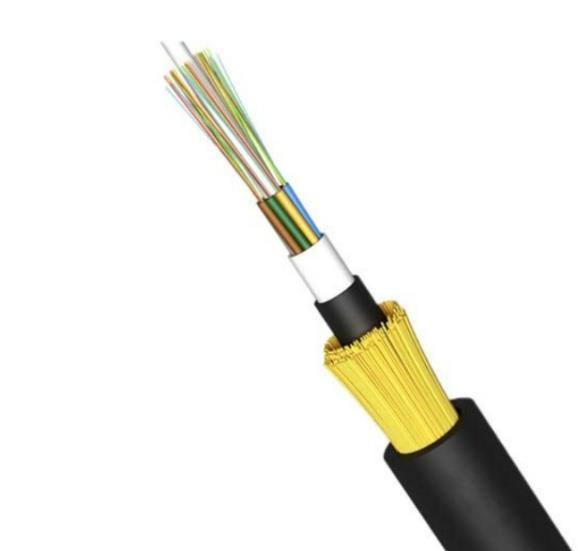

ADSS fiber optic cable adopts loose layer stranded structure. The 250µM fiber is sheathed in a loose tube of high modulus material filled with a waterproofing compound. The loose tube (and filler rope) is wound around the non-metallic central strength core (FRP) to form a tight cable core, the gaps of the cable core are filled with water blocking paste. The core wire of the cable is extruded with a polyethylene (PE) inner sheath, then reinforced with aramid fiber winding, and finally extruded with a polyethylene (PE) outer sheath or outer sheath.

▌Feature:

1. It can be erected on the same tower as the power line, and there is no need to set up another tower.
2. It can be constructed without power failure, and the failure of the power line will not affect the normal transmission of the optical cable.
3. Non-metallic structure, good insulation, lightning protection.
4. The production process is excellent, the aramid yarn is uniformly stressed, and the stress-strain performance is excellent.
5. The cable diameter is small, the weight is light, the span can be up to 1500m, and the additional load of the tower body is low.
6. The tensile strength is large, which can exceed 90kN, and the anti-corrosion performance is good.
7. Excellent impact resistance, can adapt to harsh weather conditions.

▌Technical Data:

No. of cable			12
Design			1+5
(StrengthMember+Tube&Filler)
Fiber type			G.652D
Central Strength Member		Material	FRP
		Diameter	1.5
		(±0.05mm)
Loose Tube		Material	PBT
		Diameter	2.1
		(±0.05mm)
		Thickness	0.35
		(±0.03mm)
		MAX.NO./per	6
Filler Rope		Material	PE
		Diameter	1.8
		(±0.05mm)
		NO.	4
Water Blocking Layer		Material	Flooding Compound
Additional Strength Member		Material	Aramid Yarn
Outer Sheath		Material	MDPE
		Thickness	1.8(nominal)
		Color	black.
Cable Diameter(±0.2mm)			9.6
Cable Weight(±10.0kg/km)			78
Cable breaking strength(RTS)			5.8Kn
Working Tension (MAT)			2.2Kn
Crush Resistance	Short Term		2200
	Long Term		1100
Min. bending radius	Without Tension		10.0×Cable -φ
	Under Maximum Tension		20.0×Cable -φ
Temperature range(℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

Span(meter)	Weight(KG/KM)	Diameter(mm)	Initial Tension(N) Upload Load
8 Fibers
100	132	12.2	6000	6280
200	134	12.4	6900	7102
300	138	12.6	8200	8452
400	144	13.0	11500	12020
500	148	13.3	12200	12400
600	162	13.6	17500	17852
700	173	13.9	21600	22200
800	178	14.2	24200	24320
12 Fibers
100	132	12.2	6000	6280
200	134	12.4	6900	7102
300	138	12.6	8200	8452
400	144	13.0	11500	12020
500	148	13.3	12200	12400
600	162	13.6	17500	17852
700	173	13.9	21600	22200
800	178	14.2	24200	24320

▌product mix

▌Application

The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage transmission lines. Polyethylene (PE) sheath can be used for 10kV and 35kV Power lines; For 110kV and 220kV power lines, the hanging point of optical cable must be determined by calculating the distribution of electric field strength, and the at outer sheath must be used. At the same time, the dosage of aramid fiber and perfect stranding process are carefully designed to meet the application requirements of different spans.

▌Packaging:

1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type,Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters.	Our Service: 1. We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2. We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3. Please send us inquiry for more products info and we will give you feedback in 12 hours.

▌FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
