    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : ADSS
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100km/Day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication

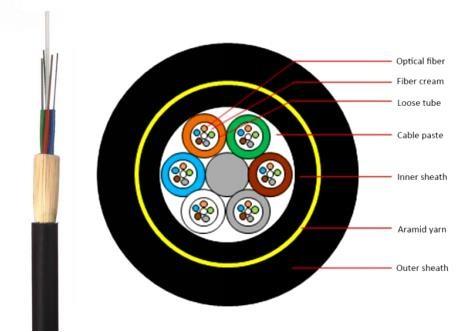

    ADSS Outdoor Communication Photoelectric Composite Cable Core 48-Core Self-Supporting Optical Cable Single-Mode Optic


    Product Description


    ADSS (all-dielectric self-supporting) optical cable, due to its unique structure, insulation and high temperature resistance, and high tensile strength, provides fast and economical transmission of power communication system channels.
    In general, ADSS cables are easier to install than OPGW (Optical Composite Ground Wire). It is recommended to use power lines or towers to erect ADSS cables nearby, and even ADSS cables are necessary in some places.

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication


    Application


    (1) ADSS Outdoor Communication Photoelectric Composite Cable is used as the lead-in and lead-out optical cable of the OPGW system relay station. Based on its safety properties, the power isolation problem can be well solved when introducing and extracting the repeater station.
    (2) Use 48 Core ADSS Fiber Optic Cable as the transmission cable of the optical fiber communication system in the high voltage (110kV-220kV)

    power network. Especially in many places, it is very convenient to use it when retrofitting old communication lines.
    (3) Use it for optical fiber communication system in 6kV~35kV~180kV distribution network.


    Feature


    All dielectric, no metal, non-conductive; small cable diameter, large tensile force ratio; low linear expansion coefficient,

    stable performance, high and low temperature resistance.

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication


    Specification

    TYPEADSS
    JACKETPE/AT
    SPAN(m)100200300400500600700800
    OD(mm)12.212.412.612.913.213.613.914.2
    Rated tensile strength (RTS)(KN)15.0017.5020.6028.0030.0044.0055.2060.40
    Maximum allowable tension(KN)6.006.908.2011.5012.2017.5021.6024.20
    WT(Kg/km)132134138144148164173178
    Minimum allowable bending radius(mm)Run:15D; Laying :25D(D:OD)
    Long-term allowable stable operation (C)-40~+70
    Maximum disc length (m)6000

    Fiber CountNominal Cable Diameter(mm)Nominal Weight (kg/km)Max FiberPer TubeMax No. of (Tubes+fillers)Allowable Tensile
    Load (N)
    Allowable Crush
    Resistance
    (N/100mm)
    Short termlong
    term
    Short
    term
    Long
    Term
    2-3610.31096615006001000300
    38-7211.514512615006001000300
    74-9613.517512815006001000300
    98-12014.8209121017006001000300
    122-14416.6249121220006001000300
    146~21616.72541218(2 layers)20006001000300
    218-28819.03251224(2 layers)25006001000300

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication


    Ex works

    Sichuan Aitong Cable Co., Ltd. is a high-tech enterprise specializing in R & D and production of optical fiber communication (FTTH), digital TV, cable TV and Ethernet network. The company was established in Sichuan Province in 1998. China's one-stop electronic store brings together thousands of products from China's best factories and some well-known brands. Key markets:
    The Chinese mainland, the United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, Philippines, South Africa, Indonesia, Mexico, Brazil and other countries.
    Major High Efficiency
    More than 15 years of professional experience in the industry
    Strong technical production team
    Advanced production equipment and perfect management process


    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable CommunicationODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable CommunicationODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication
    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable CommunicationODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable CommunicationODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication

    Production and Qulaity Test

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication

    ODM Photoelectric Composite Cable ADSS 48 Core Fiber Optic Cable Communication

    FAQ

    Q1: Are you a factory or trading company?
    A1: We are a manufacturer.
    Q2: Where is your factory located? How can I visit there?
    A2:Our factory are located in Deyang city.
    You can fly to Sichuan international airport. And tell us your flight No. We will arrange to pick you up.
    Q3: May I buy samples from you?
    A3: Yes! You are welcome to place sample order to test our superior quality and services.
    Q4: What is your Warranty?
    A4: All the products will have 12 months Warranty
    Q5:What payment method do you accept?
    A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
    Q6: Can you put my brand name (logo) on these products?
    A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
    Q7: May I know the status of my order?
    A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
    Q8: What’s the leading time? How long do you need to prepare my goods?
    A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
    Q9: How will you deliver my goods to me?
    A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
    Q10: Can you provide us more other products to us to help us to save more shipping costs?
    A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
