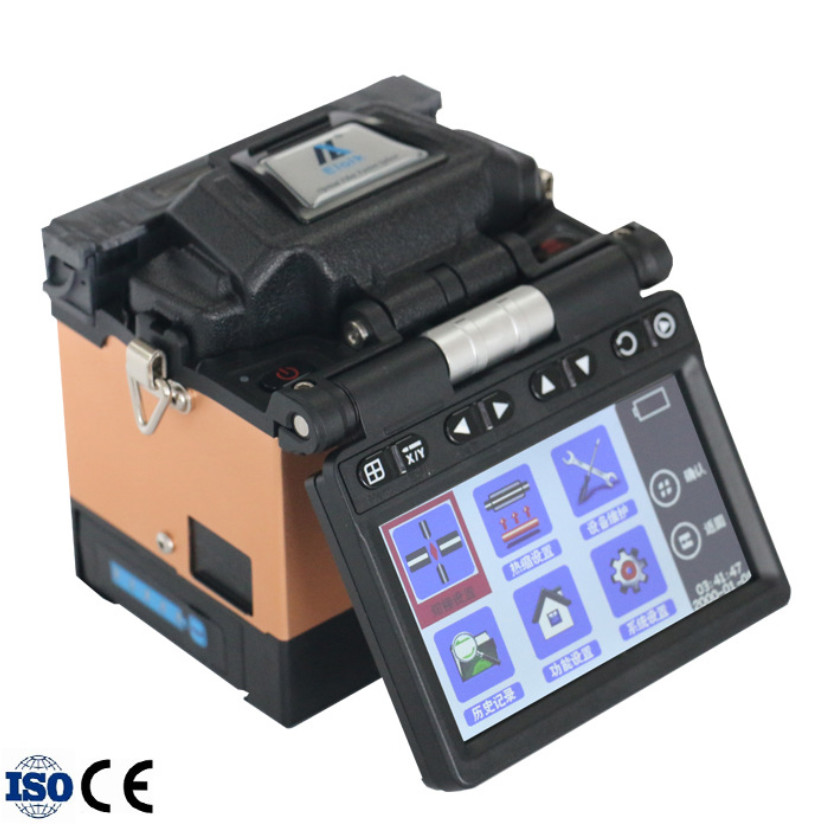

    Multifunctional Fiber Optic Accessories Optical Fiber Fusion Splicer Ai-9

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : AI-9
    Certification : Iso9001
    Price : usd20
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000 pcs/day
    Delivery Time : 8-10 days
    • Product Details
    • Company Profile

    Multifunctional Fiber Optic Accessories Optical Fiber Fusion Splicer Ai-9

    Fiber Optic Accessories Multifunctional Optical Fiber Fusion Splicer Ai-9


    Description


    The product's predecessor was: AI-8

    The AI-9 optical fiber fusion splicer uses the high-speed image process technology and special exact orientation technology, so that the whole process of fiber's fusion can be finished in 10 seconds automatically.


    Attention! By default, the device is configured in auto mode. In most cases, any adjustments of the default settings are not required. No calibration is required - it must be done only in case of problems with obtaining the correct splice. Available in the Google Play and AppStore application is required, for example, to change the default splicing program or calibration due to extremely changing environmental conditions.


    Changing the parameters and configuration of the splicer is possible only through the Bluetooth interface with dedicated applications on Android / IPhone.


    Features


    1. Welding in 6 seconds, heating in 13 seconds, the number of welding heating is more than 120 times.

    2. Four-motor core alignment
    3. In terms of performance parameters, it is better than most fusion splicers. With a small body and high integration,

    tumtec has made great efforts.

    4. Equipped with a lightweight five-in-one fixture, which is smaller than the usual fixture. Durable.
    5. Low splicing loss (SM:0.03dB/MM0.02dB/DS:0.05dB/NDS:0.05dB/G657E0.03Db/G654E0.01Db).
    The heating furnace supports five sizes of heat shrink tubing (20/30/40/50/60mm)


    Technical parameter


    Fiber typeSM (single mode), MM (multimode), DS (dispersion shift), NZDS (non-zero dispersion shift)
    Splice loss0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
    Return lossbetter than 60dB
    Operation modefully automatic, semi-automatic, manual
    Fiber alignmentCladding alignment
    Welding time≤6 seconds
    Heating time≤18 seconds
    MagnificationVertical dual display, magnification 360 times; horizontal dual display, 180 times magnification
    Image displayHigh-performance 5-inch full digital true color display, providing clear and delicate image display
    Optical fiber fixtureThree-in-one fixture: leather cable, 0.25mm, 0.9mm ordinary optical fiber, etc.
    Tension teststandard 2N
    Heat shrinktubing 60mm, 40mm and a series of heat shrink tubing
    The battery capacity6000mAh, 200 times of splicing is typical, and the charging time is about 3 hours (the splicing can be done while charging)
    Electrode lifetypically 3000~5000 times, electrode replacement is simple and convenient
    External interfaceUSB for easy data download and software update
    Power supplyBuilt-in lithium battery: 11.1V 6000mAh; external adapter: input AC 100~200V, output DC 13.5V/4.5
    Working Temperature-10℃~+60℃; Humidity: 0~95%RH (non-condensing); Altitude: 0~5000m
    Weight2.2kg (without battery)
    Host sizelength×width×height: 130mm×135mm×130mm
