    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYXTW
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 12 Days
    • Product Details
    • Company Profile

    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground

    GYXTW Fiber Optic Cable 24 cores Single Model Outdoor Aerial Underground


    Description


    GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Categories: Optic Fiber cables, Outdoor Cable Tags: fiber optic, fiber optic cable, gyxtw, outdoor cable.

    Application Scope


    1. Long distance and local area network communication.

    2. Adapted to outdoor distribution.

    3. Suitable for aerial, pipeline laying method.


    Technical data

    No.
    Items
    Unit
    Specification
    G.652D
    1
    Mode Field Diameter
    1310nm
    μm
    9.2±0.4
    1550nm
    μm
    10.4±0.5
    2
    Cladding Diameter
    μm
    124.8±0.7
    3
    Cladding Non-Circularity
    %
    ≤0.7
    4
    Core-Cladding Concentricity Error
    μm
    ≤0.5
    5
    Coating Diameter
    μm
    245±5
    6
    Coating Non-Circularity
    %
    ≤6.0
    7
    Cladding-Coating Concentricity Error
    μm
    ≤12.0
    8
    Cable Cutoff Wavelength
    nm
    λcc≤1260
    9
    Attenuation (max.)
    1310nm
    dB/km
    ≤0.36
    1550nm
    dB/km
    ≤0.24

    Mechanical and Environmental Characteristics

    ItemsUniteSpecifications
    Tensio (Long Term)N600
    Tension (Short Term)N1500
    Crush (Long Term)N/10cm300
    Crush (Short Term)N/10cm1000
    Min. Bend Radius (Dynamic)mm20D
    Min. Bend Radius (Static)mm10D
    Installation Temperature-20~+60
    Operating Temperature-40~+70
    Storage Temperature

    -40~+70


    Technical Parameter

    Fiber CountCable Diameter (mm)Cable Weight (kg/km)

    Tensile Strength

    Long/Short

    Term (N)

    Crush Resistance

    Long/Short

    Term (N/100mm)

    Bending

    Radius Static/Dynamic

    (mm)

    2~1210.61241000/30001000/300010D/20D
    14~2412.01471000/30001000/300010D/20D

    Transmission Characteristics
    G.652G.65550/125μm62.5/125μm

    Max Attenuation

    (dB/km) (+20℃)

    850 nm3.03.3
    1300 nm1.01.0
    1310 nm0.360.4
    1550 nm0.240.23
    Cable Cute-off Wavelength (nm)≤1260≤1450

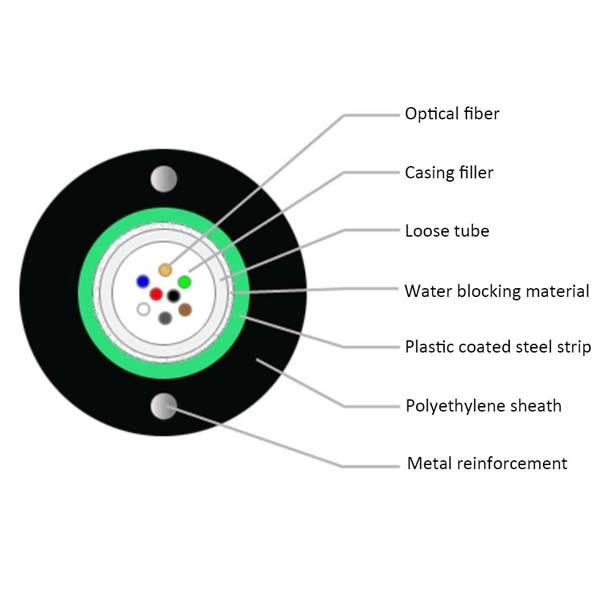

    Structure


    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground


    Workshop and Quality Test

    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground


    Packing and Delivery

    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground

    GYXTW Fiber Optic Cable 24 Cores Single Model Outdoor Aerial Underground

    FAQ

    Q1. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q2. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q3. What about the lead time?
    A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q4. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B. Secondly We quote according to your requirements or our suggestions.
    C. Thirdly customer confirms the samples and places deposit for formal order.
    D. Fourthly We arrange the production.
