FTP Indoor 4pair 23awg 99.9%Oxygeen-free Copper 1000ft Pull Box
Cat6 Lan Cable
Cable Specification
Conductor | Material | Solid Bare Copper |
Size | 23AWG X 4P |
Construction | 1/0.585±0.005mm |
Insulation | Material | HDPE |
Diameter | 1.02mm±0.01mm |
Colors | Blue-White/Blue |
Orange-White/Orange |
Green-White/Green |
Brown-White/Brown |
Shield | Filler | LDPE |
Core wrap | PE Tape |
Drain wire | 1/0.40±0.004mm |
Shield | AL Foil |
Core wrap | PE Tape |
Jacket | Material | PVC |
Diameter | 7.60±0.20mm |
Electrical & Physical Characters |
Rating | 75℃ 30V |
Conductor Resistance | Max 78.8ohm/km at 20℃ |
Dielectric Strength | Min AC1.5KV |
Spark Test | 5.0KV |
AC Leakage Current Through overall Jacket | AC 1500V <=10mA |
Insulation | Unaged | Tensile Strength | 16.5 Mpa |
Elongation | 500% |
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) |
Elongation | 250%(100℃ 168h) |
Jacket | Unaged | Tensile Strength | 13.8 Mpa |
Elongation | 150% |
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) |
Elongation | 80%(100℃ 168h) |
Cold Bend Test | -20℃ 4hours No Cracking |
DC Resistance Unbalance | Max 5% |
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km |
Characteristic Impedance | 1~500MHZ 100±15OHM |
Propagation Delay | 500MHZ Max 536ns/100m |
Delay Skew | 1~500MHZ Max 40ns/100m |

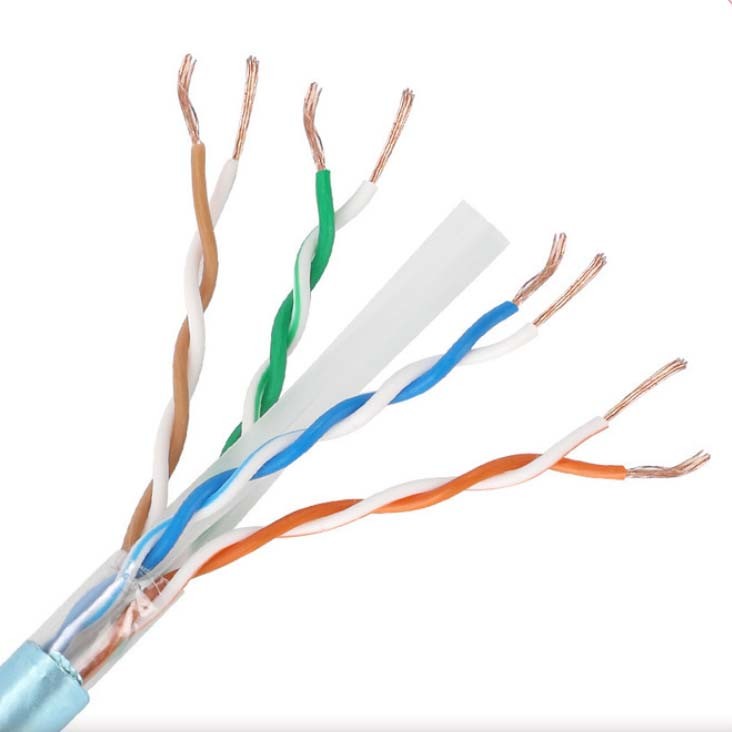

Cable Overview
Material Instruction
1. 99.9%Oxygeen-free Copper.
2. Eco-friendly,pollution-free and new materials selected.Promise
new material only.
3. Insulation: Solid HDPE.
4. Eco-friendly PVC Jacket , high-temperature resistance,long
working life.
Physical Electrical Characteristics
1. Using standard twisted construction design, small crosstalk of
signal transmission Upload and download in high speed transfer.
2. Bandwidth is standard 250 MHz.
3. Support 10-Gigabit Ethernet netword transmission requirements.
4. DC resistance (max): 4.8Ω/100m at 20°C;
5. Mutual capactitance (max): 5.6nF/100m;
6. Unbalanced capacitance (max): 330pF/100m;
7. Dielectric strength between conductors (min): 2.5kV/2s;
8. Impedance: 1-250MHz 100±15Ω;
9. Differential phase delay (max): 45ns/100m;
10. Operating temperature: -20~+60°C;
11. Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
1. Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA -
568B
2. Certificates ISO9001,14000.
OEM / Related Production For Lan Cable
OEM custom-made production according to different customer's
request. Shape, PVC ,color, Conductor diameter, degree of
tightness, logo design, Inner and Outer package design, all of
below request are available.
Production Line and Quality Test
Packing
Payment and Shipping
Payment
1. We usually use T/T
T/T deposit before production and balance when shipment.
2. Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by
express delivery,such as TNT,DHL,UPS,FEDEX or EMS.
For big order,we will ship the goods by air or by sea.
