    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : 5DF
    Price : USD 0.7-1.32 Meters $1.32
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Kilometer/Kilometers per Day
    Delivery Time : 5-8 work days
    Certification : ISO9001
    • Product Details
    • Company Profile

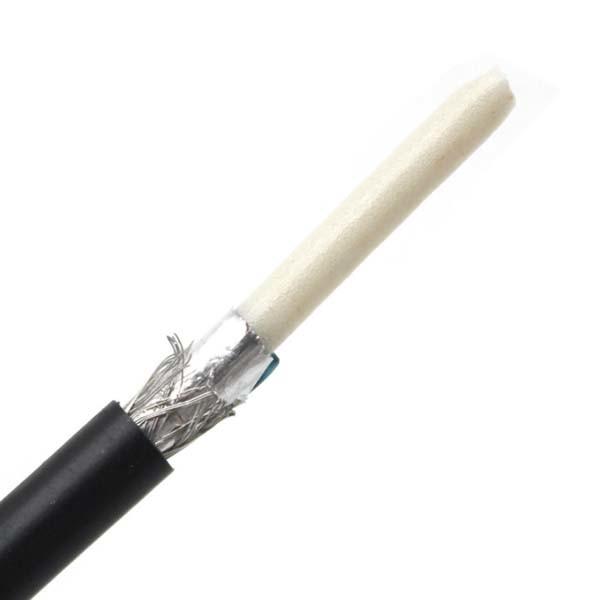

    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket


    Product overview


    21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the 2nd shield is 90% coverage braiding. The Jacket is PVC or PE for outdoor applications.


    Features

    • CCTV coaxial power line is easy to use
    • Custom requirements are welcome.
    • dielectric: foam / solid PE
    • Aluminum foil + aluminum magnesium wire two layer shielding
    • Fully isolate EMI/RFI clutter
    • Double shield anti-interference
    • PVC sheath degree: 65, 70, 75 and more
    • Suitable for use as branch line subscriber line electronic device for closed circuit TV, common antenna TV and cable TV system below 1GHz
    • Inner conductor: bare copper / CCS

    Construction and Dimension


    Item
    RG59
    RG58
    RG6
    RG7
    RG11
    Material of inner conductor
    Cu
    Cu
    Cu
    Cu
    Cu
    Diameter of inner conductor(mm)
    0.81±0.02
    19*0.20±0.01
    1.00±0.02
    1.29±0.02
    1.63±0.02
    Material of dielectric
    Foam PE
    PE
    Foam PE
    Foam PE
    Foam PE
    Diameter of Dielectric(mm)
    3.66±0.15
    2.95
    4.57±0.01
    5.72
    7.11
    Material of Shield
    ALfoil+Al brading
    BC/TC braiding
    ALfoil+Al brading
    ALfoil+Al brading
    ALfoil+Al brading
    Coverage
    40%--95%
    95%
    40%--95%
    40%--95%
    40%--95%
    Diameter of 1st outer conductor
    3.9
    -
    4.9
    5.9
    7.52
    (mm)
    Diameter of 2nd outer conductor
    4.12
    --
    5
    -
    7.8
    Material of Jacket
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    Diameter of Jacket
    6.3
    4.95
    6.9
    8.1
    10.16

    RG59 Coax ConstructionOD/ (mm)
    ConductorSolid Copper0.81
    DielectricPhysical Foam Polyethylene3.66
    ShieldBonded Aluminum Foil+Aluminum BraidNom.4.10
    JacketPVC or Polyethylene6.1
    PVC

    RG 58 Cable Physical Characteristics
    Weight per5kg
    Minimum bend radius32mm
    Operating temperature rangePVC:-25℃ to +75℃
    PE:-45℃ to +80℃
    RoHS compliance2011/65/EU (RoHS)

    RG-59 Cable Electrical Characteristics
    Impedance75+/- 2 ohms
    Capacitance52pF/m. max
    Maximum voltage5000Volts
    Velocity of propagation85%
    Operating Frequency1GHz
    Screening effectiveness≥ 40dB (up to 1 GHz)
    Insulation resistance≥ 1 x 108MΩm
    Max. operating voltage≤ 3.0kVrms (at sea level)

    RG59 Attenuation
    Freq(MHz)Typical(dB/m)Max. CW power
    1000.105319
    3000.189184
    5000.249143
    7000.3121
    9000.346106
    10000.367101

    ▌Parameter


    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

    projectMaterial ScienceDiameter (mm)
    1. Inner conductorBare copper wire1.02
    2. InsulatorFoamed polyethylene4.57
    3. Outer conductorSelf adhesive aluminum foil + aluminum magnesium wire braidingNom.5.22
    4. SheathPolyvinyl chloride (PVC)6.91
    Polyethylene (PE)

    goodsRG6 RG59 coaxial cable with power cord
    Minimum order quantity30000 meters
    Conductor materialCopper / CCS
    insulationFoam / solid PE
    Woven36W, 48W, 64W, 96w, 112W, 128W or customized
    JacketPVC

    Application
    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE JacketCopper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE JacketCopper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket
    Rack connection of equipment, transmission of closed-circuit television (CCTV), common antenna system (MATV) and color or monochrome RF monitor. These applications do not require the selection of precision video coaxial cables with particularly strict electrical tolerances. RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

    Packaging:


    Copper Conductor Coaxial Cable LDPE Insulation 5DF PVC and PE Jacket

    1. Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.
    a. Supplier: Guanglian or as customer required

    b. Standard Code(Product Type, Fiber Type,Fiber Count)
    c. Year of manufacture: 20 years
    d. Length marking in meters.

    2. Standard Packaging:
    Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.

    Our Service:

    1. Please send us inquiry for more products info and we will
    give you feedback in 12 hours.
    2. We are the one of biggest manufacture of cable in China and has more than 20 years manufacturing and selling experience.
    3. We accept OEM. The cable size and material are customized.
    Ur own logo and own design are welcome. We will produce
    according to your requirment and description;


    FAQ

    Q1. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q2. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q3. What about the lead time?
    A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q4. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B.Secondly We quote according to your requirements or our suggestions.
    C.Thirdly customer confirms the samples and places deposit for formal order.
    D.Fourthly We arrange the production.

    Q5. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available
