GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable

    Buy cheap GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable from wholesalers

    Buy cheap GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable from wholesalers
    • Buy cheap GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable from wholesalers
    • Buy cheap GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable from wholesalers

    GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYTA14
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 200km/Day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable

    GYTA14 Core Communication Cable GYTA14 Outdoor Single Mode Fiber Optic Cable


    Product Description


    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. At the center of the cable core is a metal reinforcement core, which, for certain numbers of cables, is coated with polyethylene.

    Characteristics

    1. 13mm diameter tensile durability, thicker and more durable long service life
    2. Widely used in many fields
    3. Suitable for outdoor wiring, piping, overhead and buried laying
    4. Low loss, compact structure, good comprehensive mechanical properties

    Applicable laying method:

    1. Directly buried
    2. Buried
    3. Pipe through

    Advantages

    1. Strong anti-ultraviolet radiation performance
    2. Good pressure resistance and moisture resistance
    3. Loose sleeve layer twisted, double sheath, very thick
    4. Metal reinforcement member, grease filling

    GYTA 14 optic fiber cable Technology Specification:


    Fiber Type
    G.652
    G655
    50/125μm
    62.5/125μm
    Attenuation(+20℃)
    @850nm
    ≤3.0 db/km
    ≤3.3 db/km
    @1300nm
    ≤1.0 db/km
    ≤1.0 db/km
    @1310nm
    ≤3.6 db/km
    ≤0.40 db/km
    @1550nm
    ≤0.22 db/km
    ≤0.23 db/km
    Bandwidth
    @850nm
    ≥500MHz.km
    ≥200MHz.km
    @1300nm
    ≥500MHz.km
    ≥500MHz.km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength
    ≤1260 nm
    ≤1450 nm

    Cable type
    (Increased by 2 fibers)
    Fiber count
    Cable Weight(Ref)
    Kg/km
    Tensile Strength
    Long/Short term
    N
    Crush Resistance
    Long/Short term
    N
    Bending Radius
    Dynamic/Static
    mm
    GYXS/GYXTW-2~-12Xn
    2-12
    82
    600/1500
    300/1000
    10D/20D
    GYXS/GYXTW-2~-12Xn
    2-12
    124
    1000/3000
    GYXS/GYXTW-14~-24Xn
    14-24
    147
    1000/3000

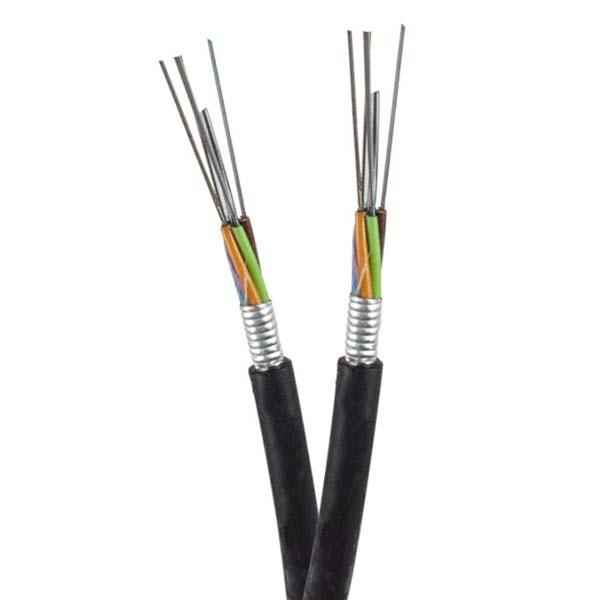

    Structure:


    GYTA14 Core Outdoor Fiber Optic Cable OM3 Single Mode Optic Cable

    FAQ

    Q1: Are you a factory or trading company?
    A1: We are a manufacturer.
    Q2: Where is your factory located? How can I visit there?
    A2: Our factory are located in Deyang city.
    You can fly to Sichuan international airport. And tell us your flight No. We will arrange to pick you up.
    Q3: May I buy samples from you?
    A3: Yes! You are welcome to place sample order to test our superior quality and services.
    Q4: What is your Warranty?
    A4: All the products will have 12 months Warranty
    Q5: What payment method do you accept?
    A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
    Q6: Can you put my brand name (logo) on these products?
    A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
    Q7: May I know the status of my order?
    A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
    Q8: What’s the leading time? How long do you need to prepare my goods?
    A8: Delivery (no more than 200 rolls) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
    Q9: How will you deliver my goods to me?
    A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
    Q10: Can you provide us more other products to us to help us to save more shipping costs?
    A10: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
