    Non Metallic Armored Fiber Optics Cables Black Duct Steel Wire 2km/ Roll

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : 48-Core Outdoor Optical Cable GYFTY Stranded Optical Cable 48-Core Stranded Non-Metallic Optical Cable Duct Optical Cabl
    Certification : ISO9001/CE/RoHS
    Price : Negotiation processing
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 km/Day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Non Metallic Armored Fiber Optics Cables Black Duct Steel Wire 2km/ Roll

    48-Core Outdoor Optical Cable GYFTY Stranded Optical Cable 48-Core Stranded Non-Metallic Optical Cable Duct Optical Cabl
    48Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
    Product description

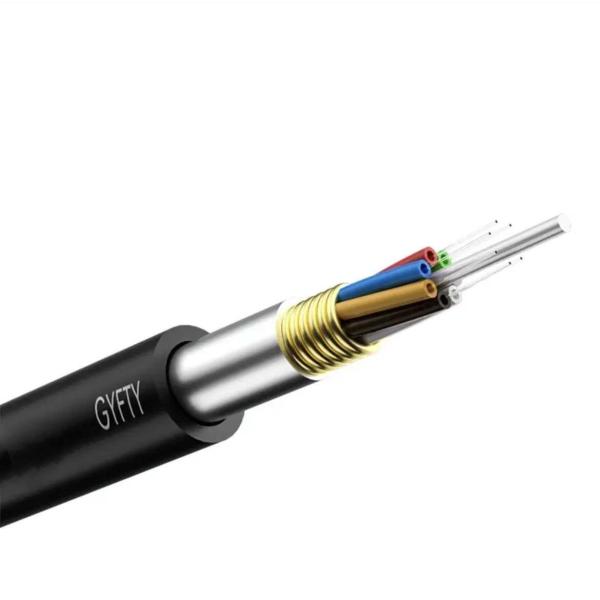

    GYFTY optical cable is a stranded structure. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact circular cable core, and the gaps in the cable core are filled with water blocking fillers. The cable core is extruded with a polyethylene sheath to form a cable.

    Characteristics

    • Provide a rodent-proof protective cover with chemical rodent resistance, which effectively delays the spread of rodent-proof additives and protects the working environment and construction safety
    • All-electric design, suitable for areas prone to lightning strikes
    • Suitable for overhead and pipeline installation with rodent and lightning protection requirements
    • Two parallel steel wires ensure tensile strength
    • Small diameter, light weight and friendly installation

    Features

    • Product weight: 80-130Kg/KM
    • Stretching strength: 800/3000N
    • Flattening force: 800/3000N
    • Use environment: -40~60℃

    Applications


    • Installed in duct, direct burial.
    • FTTx.

    Fiber Color Code

    No.123456
    ColorBlueOrangeGreenBrownGrayWhite
    No.789101112
    ColorRedBlackYellowVioletPinkAqua


    ▌Cable structure and parameter

    Fiber count2~1214~24
    Max. Cores in tube1224
    Cable diameter7.68.3
    Tensile strength(N)1500
    Crush resistance
    (N/100mm)
    Long term300
    Short term1000
    Bending radiusDynamic20×D
    Static10×D
    Storing temperature-40°C to +70°C
    Operating temperature-40°C to +70°C

    G.652G.65550/125μm62.5/125μm
    Attenuation
    (+20℃)
    @850nm≤3.0dB/km≤3.0dB/km
    @1300nm≤1.0dB/km≤1.0dB/km
    @1310nm≤0.36dB/km≤0.40dB/km
    @1550nm≤0.22dB/km≤0.23dB/km
    Bandwidth (Class A)@850nm≥500MHz·km≥200MHz·km
    @1300nm≥1000MHz·km≥600MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelengthλcc≤1260nm≤1480nm


    Structure and Technical Specifications GYXY

    Fiber
    Count

    Nominal
    Diameter
    (mm)

    Nominal
    Weight
    (kg/km)

    Allowable Tensile Load
    (N)

    Allowable Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    2~126.252100040010001000
    14~247.064120050010001000


    Structure and Technical Specifications GYFXY(All-Dielectric)

    Fiber
    Count

    Nominal
    Diameter
    (mm)

    Nominal
    Weight
    (kg/km)

    Allowable Tensile Load
    (N)

    Allowable Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    2~126.24560025010001000
    14~247.05680030010001000


    ▌Roduction and Quality Test

    Non Metallic Armored Fiber Optics Cables Black Duct Steel Wire 2km/ Roll



    Application

    Non Metallic Armored Fiber Optics Cables Black Duct Steel Wire 2km/ Roll




    Packaging

    Non Metallic Armored Fiber Optics Cables Black Duct Steel Wire 2km/ Roll

    1. Standard Packaging:
    Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
    2. Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.
    a. Supplier: Guanglian or as customer required
    b. Standard Code(Product Type, Fiber Type,Fiber Count)
    c. Year of manufacture: 7 years
    d. Length marking in meters.

    Our Service:
    1. We are the one of biggest manufacture of fiber optic
    cable in China and has more than 10 years manufacturing
    and selling experience.
    2. We accept OEM. The cable size and material are customized.
    Ur own logo and own design are welcome. We will produce
    according to your requirment and description;
    3. Please send us inquiry for more products info and we will
    give you feedback in 12 hours.


    FAQ
    1. Are you the real manufacturer?
    Us. We are the real manufacturer with 23 year’s history.
    2. What’s the MOQ?
    Us. The MOQ of Fiber Optic cable is 10km.
    3. What’s delivery time?
    Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
    4. How to Store the Optical Fiber Cable Properly?
    Us. Store the drum indoor before using, the drum should place sideways not on the end.
    5. Can you supply customized products and logo?
    Yes. We supply OEM service. You can send us your drawing.
    6. What’s your payment terms?
    Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
