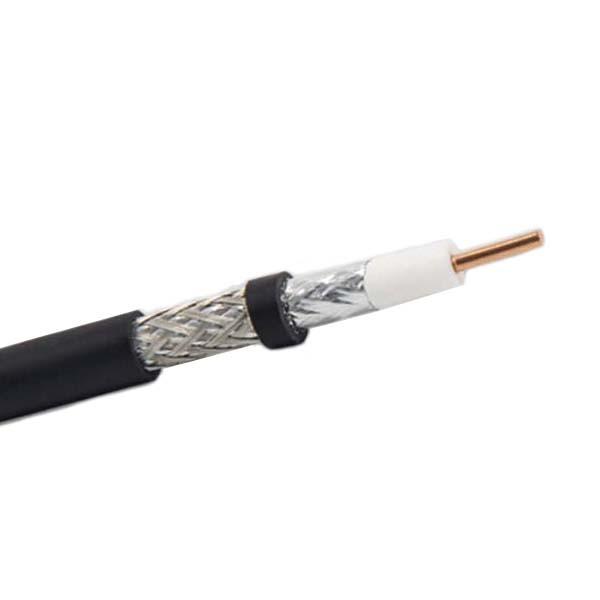

Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket

    Buy cheap Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket from wholesalers

    Buy cheap Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket from wholesalers
    • Buy cheap Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket from wholesalers
    • Buy cheap Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket from wholesalers
    • Buy cheap Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket from wholesalers

    Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : 5DF
    Certification : ISO9001
    Price : USD 0.7-1.32 Meters $1.32
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Kilometer/Kilometers per Day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket

    opper Conductor Coaxial Cable 5DF With PVC PE Jacket OD7.5MM LOW-LOSS


    Product overview


    A cable in which conductor and shield share the same axis. Coaxial cable belongs to communication cable, from the use can be divided into baseband coaxial cable and broadband coaxial cable (namely network coaxial cable and video coaxial cable), coaxial cable price is more expensive than twisted pair, but its anti-interference performance is stronger than twisted pair. Coaxial cables can be used when more devices need to be connected and the communication capacity is large.


    This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.

    • 50 Ohm data signal transmission;
    • The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
    • Excellent performance in high frequency,VSWR stability;
    • Similar to the LMR500 coaxial cable;
    • RoHS compliant;


    Features

    • Inner conductor: bare copper / CCS / CCC
    • dielectric: foam / solid PE
    • Suitable for use as branch line subscriber line electronic device for closed circuit TV, common antenna TV and cable TV system below 1GHz
    • Double shield anti-interference
    • Aluminum foil + aluminum magnesium wire two layer shielding
    • Fully isolate EMI/RFI clutter
    • PVC sheath degree: 65, 70, 75 and more
    • Custom requirements are welcome.
    • CCTV coaxial power line is easy to use

    Construction and Dimension


    Item
    RG59
    RG58
    RG6
    RG7
    RG11
    Material of inner conductor
    Cu
    Cu
    Cu
    Cu
    Cu
    Diameter of inner conductor(mm)
    0.81±0.02
    19*0.20±0.01
    1.00±0.02
    1.29±0.02
    1.63±0.02
    Material of dielectric
    Foam PE
    PE
    Foam PE
    Foam PE
    Foam PE
    Diameter of Dielectric(mm)
    3.66±0.15
    2.95
    4.57±0.01
    5.72
    7.11
    Material of Shield
    ALfoil+Al brading
    BC/TC braiding
    ALfoil+Al brading
    ALfoil+Al brading
    ALfoil+Al brading
    Coverage
    40%--95%
    95%
    40%--95%
    40%--95%
    40%--95%
    Diameter of 1st outer conductor
    3.9
    -
    4.9
    5.9
    7.52
    (mm)
    Diameter of 2nd outer conductor
    4.12
    --
    5
    -
    7.8
    Material of Jacket
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    Diameter of Jacket
    6.3
    4.95
    6.9
    8.1
    10.16

    RG59 Coax ConstructionOD/ (mm)
    ConductorSolid Copper0.81
    DielectricPhysical Foam Polyethylene3.66
    ShieldBonded Aluminum Foil+Aluminum BraidNom.4.10
    JacketPVC or Polyethylene6.1
    PVC

    RG 58 Cable Physical Characteristics
    Weight per5kg
    Minimum bend radius32mm
    Operating temperature rangePVC:-25℃ to +75℃
    PE:-45℃ to +80℃
    RoHS compliance2011/65/EU (RoHS)

    RG-59 Cable Electrical Characteristics
    Impedance75+/- 2 ohms
    Capacitance52pF/m. max
    Maximum voltage5000Volts
    Velocity of propagation85%
    Operating Frequency1GHz
    Screening effectiveness≥ 40dB (up to 1 GHz)
    Insulation resistance≥ 1 x 108MΩm
    Max. operating voltage≤ 3.0kVrms (at sea level)

    RG59 Attenuation
    Freq(MHz)Typical(dB/m)Max. CW power
    1000.105319
    3000.189184
    5000.249143
    7000.3121
    9000.346106
    10000.367101

    ▌Parameter


    Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket

    projectMaterial ScienceDiameter (mm)
    1. Inner conductorBare copper wire1.02
    2. InsulatorFoamed polyethylene4.57
    3. Outer conductorSelf adhesive aluminum foil + aluminum magnesium wire braidingNom.5.22
    4. SheathPolyvinyl chloride (PVC)6.91
    Polyethylene (PE)

    goodsRG6 RG59 coaxial cable with power cord
    Minimum order quantity30000 meters
    Conductor materialCopper / CCS
    insulationFoam / solid PE
    Woven36W, 48W, 64W, 96w, 112W, 128W or customized
    JacketPVC

    Application
    Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE JacketSolid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE JacketSolid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket
    Rack connection of equipment, transmission of closed-circuit television (CCTV), common antenna system (MATV) and color or monochrome RF monitor. These applications do not require the selection of precision video coaxial cables with particularly strict electrical tolerances. The characteristic resistance of video coaxial cable is 75 ohms, which is not optional. Physics has proved that the optimal attenuation characteristic of video signal occurs at 77 ohms. In low-power applications, the material and design determine that the optimal impedance of the cable is 75 ohms.

    Packaging:


    Solid Copper Conductor Coaxial Cable 5DF RG6 RG59 OD7.5MM With PVC PE Jacket

    1. Standard Packaging:
    Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
    2. Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.
    a. Supplier: Guanglian or as customer required

    b. Standard Code(Product Type, Fiber Type,Fiber Count)
    c. Year of manufacture: 20 years
    d. Length marking in meters.

    Our Service:
    1. We are the one of biggest manufacture of cable in China and has more than 20 years manufacturing and selling experience.
    2. We accept OEM. The cable size and material are customized.
    Ur own logo and own design are welcome. We will produce
    according to your requirment and description;
    3. Please send us inquiry for more products info and we will
    give you feedback in 12 hours.

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B.Secondly We quote according to your requirements or our suggestions.
    C.Thirdly customer confirms the samples and places deposit for formal order.
    D.Fourthly We arrange the production.
