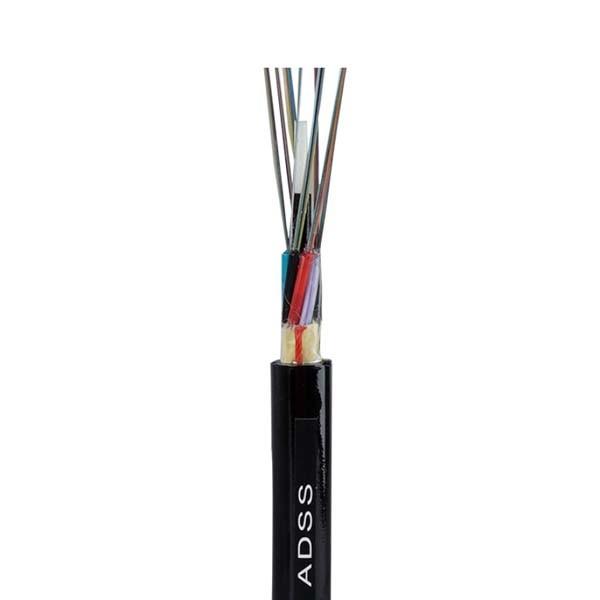

72-core ADSS photoelectric composite optical cable Outdoor
self-supporting overhead optical cable power cable
Product Description
All-dielectric self-supporting optical cable (ADSS) is metal-free,
tension-resistant, self-supporting, high-insulation,
non-inductive, thin in diameter, light, easy to construct and
economical. It is a composite optical cable made by
wrapping the optical fiber bundle around the central strength
member and taking protective measures such as
insulation, waterproofing, reinforcement and sheathing.
Application
(1) It is used as the lead-in and lead-out optical cable of the
OPGW system relay station. Based on its safety
properties, the power isolation problem can be well solved when
introducing and extracting the repeater station.
(2) Use it as the transmission cable of the optical fiber
communication system in the high voltage (110kV-220kV)
power network. Especially in many places, it is very convenient to
use it when retrofitting old communication lines.
(3) Use it for optical fiber communication system in 6kV~35kV~180kV
distribution network.
Feature
All dielectric, no metal, non-conductive; small cable diameter,
large tensile force ratio; low linear expansion coefficient,
wide applicable temperature.
Specification
| TYPE | ADSS |
| JACKET | PE/AT |
| SPAN(m) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| OD(mm) | 12.2 | 12.4 | 12.6 | 12.9 | 13.2 | 13.6 | 13.9 | 14.2 |
| Rated tensile strength (RTS)(KN) | 15.00 | 17.50 | 20.60 | 28.00 | 30.00 | 44.00 | 55.20 | 60.40 |
| Maximum allowable tension(KN) | 6.00 | 6.90 | 8.20 | 11.50 | 12.20 | 17.50 | 21.60 | 24.20 |
| WT(Kg/km) | 132 | 134 | 138 | 144 | 148 | 164 | 173 | 178 |
| Minimum allowable bending radius(mm) | Run:15D； Laying :25D(D:OD) |
| Long-term allowable stable operation (C) | -40~+70 |
| Maximum disc length (m) | 6000 |
