    Single Mode Fiber Optic Cable 2 Core GJXH Outdoor Anti Corrosion

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYXY
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100km/Day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Single Mode Fiber Optic Cable 2 Core GJXH Outdoor Anti Corrosion

    Factory direct sales Single Mode Fiber Optic Cable 2 Core GYXY Outdoor Anti Corrosion


    Product Description

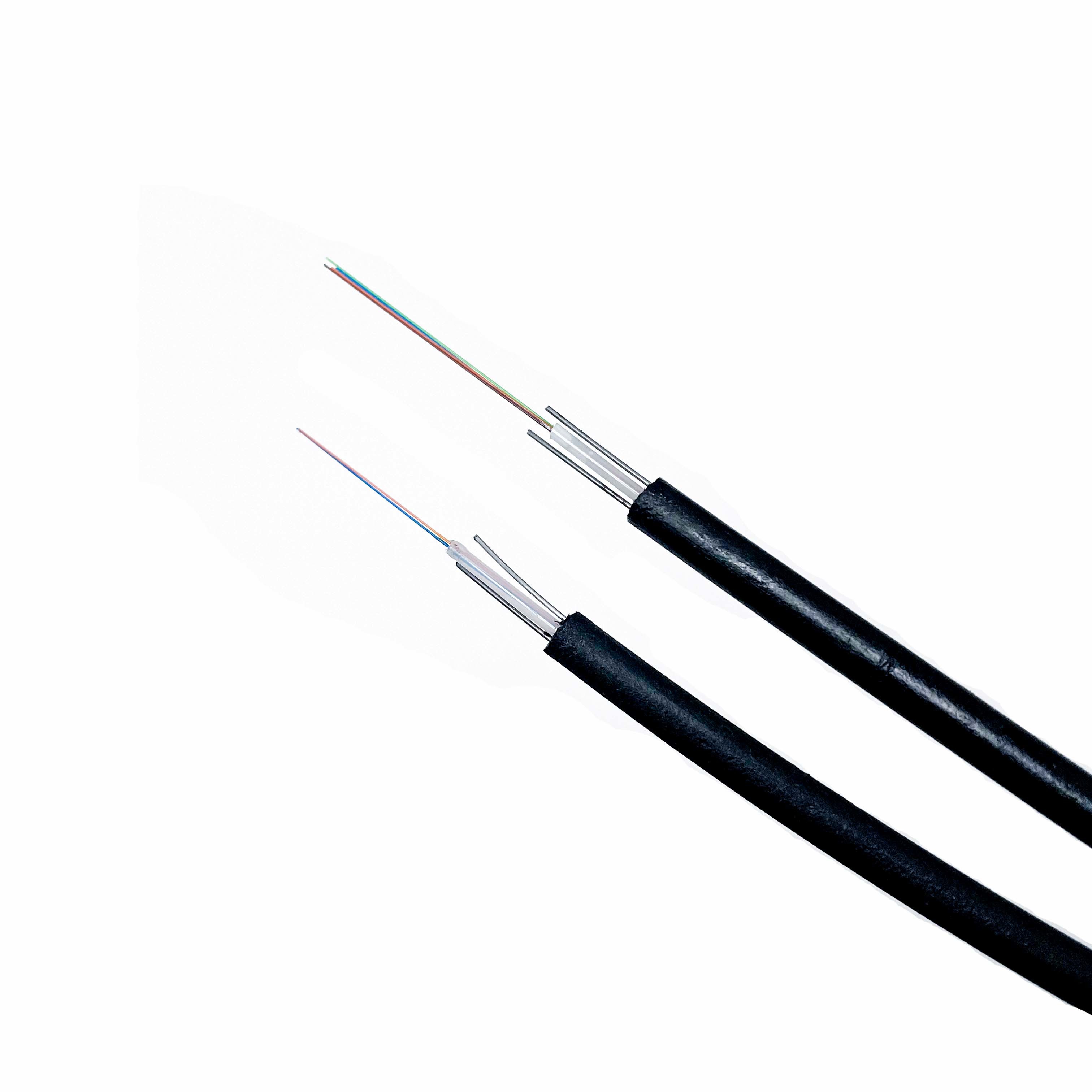

    The structure of GYXY optical cable is to sheath 250µm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. Water blocking material is added to the loose tube to ensure the longitudinal water blocking of the optical cable. Two parallel steel wires are placed on both sides and a polyethylene sheath is extruded to form a cable.


    Application


    Suitable for telecommunications, railways, video surveillance, new energy, cable television
    And many other fields


    Feature


    1. Class A fiber is more stable. Small attenuation, long transmission distance
    2. High strength FRP,high strength,Anti-interference. Non-conductive and anti-corrosion
    3. New rubber,high strength.Anti-aging.Easy to peel and long service life
    4. Plastic coated corrugated steel belt. High corrosion resistance and high mechanical strength
    5. Phosphating steel wire.Corrosion resistant.High corrosion tensile strength
    6. High quality loose tube.Protect the fiber from.Influence of internal and external pressure


    Specification


    ItemsSpecification
    Fiber Count2
    Colored Coating FiberDimension250+-15μm
    ColorBlue,Orange Blue&Brown,Gray,White,Red,Black,Yellow Violet,Pink,Aqua.
    Loose TubeDimension2.7+-0.1mm
    MaterialPBT
    ColorNatural
    Strength MemberDimension2.0mm
    MaterialFRP
    ColorNatural
    Outer JacketDimension(8.5+-0.3)mmx(4.5+-0.2)mm
    MaterialPE
    ColorBlack

    Fiber CountNominal Cable Diameter(mm)Nominal Weight (kg/km)Max FiberPer TubeMax No. of (Tubes+fillers)Allowable Tensile
    Load (N)
    Allowable Crush
    Resistance
    (N/100mm)
    Short termlong
    term
    Short
    term
    Long
    Term
    2-3610.31096615006001000300
    38-7211.514512615006001000300
    74-9613.517512815006001000300
    98-12014.8209121017006001000300
    122-14416.6249121220006001000300
    146~21616.72541218(2 layers)20006001000300
    218-28819.03251224(2 layers)25006001000300

    Single Mode Fiber Optic Cable 2 Core GJXH Outdoor Anti CorrosionSingle Mode Fiber Optic Cable 2 Core GJXH Outdoor Anti Corrosion
