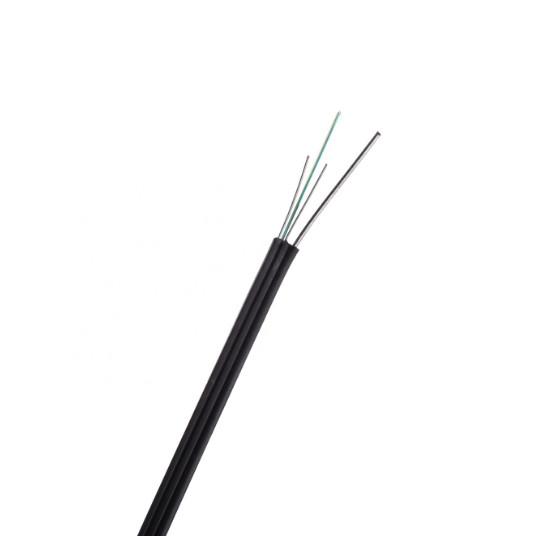

    self -supoorting 1core outdoor GJYXCH fiber optic cable LSZH G652D G657A outdoor

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GJYXCH
    Certification : ISO9001
    Price : $40/km
    Payment Terms : T/T, L/C
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    self -supoorting 1core outdoor GJYXCH fiber optic cable LSZH G652D G657A outdoor

    2core GJYXCH G657a1 Ftth Cable Optical Drop Cable With Wooden Drum

    Product details
    This optical fiber unit is positioned in the center,Two parallel phosphating steel wire(0.45mm*2) are placed at the two sides,A steel wire as the additional strength member is also applied,then the cable is completed with a black or white LSZH sheath.
    Characteristics

    1. Two parallel steel wires strength member ensure good performance of crush resistance to protect the fiber.
    2: Single steel wire as the additional strength member ensures good perfomance of tensile strength.
    3. Simple structure,light weight and high practicaility.
    4. Novel flute design,easily strip and splice,simplify the installation and maintenance.
    5. Low smoke,zero halogen and flame retardent sheath.
    6. Special bend-insensitivity fiber provides high bandwidth and excellent communication transmission property.
    Fiber color code
    Structure parameters of optical cable
    Fiber Count(core)
    Cable Diametre (mm)
    Net Weight (kg/km)
    Tensile Strength Long/Short Term (N)
    Crush Resistance Long/Short Term (N)
    Bending Radius
    Static/Dynamic(mm)
    1
    2.0x5.0±0.2
    18.5±1
    300/600
    1000/2200
    15/30
    2
    2.0x5.0±0.2
    18.5±1
    300/600
    1000/2200
    15/30
    4
    2.0x5.0±0.2
    18.5±1
    300/600
    1000/2200
    15/30
    6
    2.0x5.0±0.2
    19±1
    300/600
    1000/2200
    15/30
    8
    2.0x6.0±0.2
    23.5±1
    300/600
    1000/2200
    15/30
    12
    2.0x6.0±0.2
    24±1
    300/600
    1000/2200
    15/30
    Note: This datasheet can give you some reference, but not a supplement to the contract. Please contact our sales people
    for more currently detailed information.
    Raw Material
    Fiber type:
    G652D
    G657A
    G657A2
    Fiber Brand:
    YOFC/FiberHome/Fujikura/CORNING
    There different types fiber kindly for you reference!
    Fiber Coated
    Sheath Material
    self -supoorting 1core outdoor GJYXCH fiber optic cable LSZH G652D G657A outdoor
