SC Connector Single-Mode Optica Outdoor 1 Wire Optical Fiber Optic Patch Cord

▌Product Description

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Low insertion loss, high return loss

Good in repeatability and exchangeability,

100% Insertion, Return Loss, End Face and Interference inspectionExcellent mechanical enduranceHigh credibility and stability
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard

▌Application

● Applicable to special cases that has no room for installation of Cassette type PLC splitter
● FTTX/FTTH Systems
● CATV Links
● Optical Signal Distribution
● Passive Optical Networks (PON)
● DWDM/CWDM systems
● Test equipment
● LAN/MAN/WAN network

▌Parameter

Connector type	FC, SC,LC,ST,MU, E2000 ,D4, DIN
Fiber mode	SM			MM
End face	PC	UPC	APC	PC
|IL(dB)	|≤0.3	s0.2	S0.3	≤0.3
RL(dB)	≥45	≥50	260	≥35
Other model	MT-RJ,MPO
|IL(dB)	|s0.7		≤0.7	≤0.5
RL(dB)	|≥30		≥50	≥25

arameters	Unit	Specification
Center Wavelength	nm	1310&1550
Max. Insertion Loss	dB	0.5 dB (Typical) 0.8 dB (Max)
Return Loss	dB	>55 dB (FC/APC and No Connectors)
		50 dB (FC/PC)
Max.Polarization Dependent Loss		0.05
Polarization Mode Dispersion	ps	0.05
Faraday Rotation Angle (single pass)	degree	45
Rotation Angle Tolerance		1
Fiber Type		SMF-28XB
Connector Type		FC/SC/LC/ST or NONE
Maximum Optical Power		No Connectors: <3 W
		FC/PC or FC/APC Connectors: <300 mW
Maximum Tensile Load	N	5
Operating Temperature	°C	-5 to +70
Storage Temperature	°C	-40 to +85
Fiber Length	m	1
Package size	mm	3.0x12/4.5x25/5.5x35

Item		Single Mode		Multi Mode
Insertion loss		≤0.3dB
Return loss		UPC≥50dB, APC≥60dB		≥35dB
Repeatability		0.1dB
Working Times		≥1000 times
Operating Temperature		-40℃ to +85℃
Optical Cable Diameter		Ф0.9mm,Ф2.0mm,Ф3.0mm
3D Specification
Item		UPC Polishing		APC Polishing
Ferrule Diameter (mm)		2.5 / 1.25		2.5 / 1.25
Radius of Curv (mm)		10~25 / 7~25		5~12
Fiber Height (nm)		-125~50		±100
Apwex Offset (um)		≤50		≤50

▌Application scenario

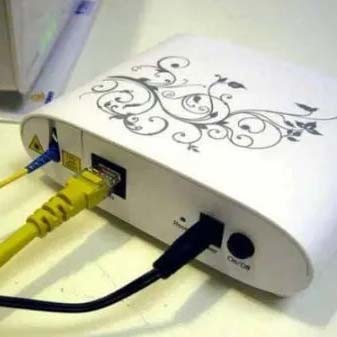

Network communication room	Light cat	Optical fiber transceiver	Optical switches

▌Frequently asked question (FAQ)

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:

1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Sichuan Aitong Wire & Cable, Inc. is a high-tech enterprise with independent intellectual property rights and brand, specializing in the design, production, and sales of optical fibre and cable. Formerly known as Deyang Radio and Television Cable Factory, it was established in 1998 and is located in Deyang City, Sichuan Province, China's significant technical equipment manufacturing base, covering an area of around 80,000 square meters. AITONG's main products include coaxial cables, data cables, optical cables, optoelectronic composite cables and other related facilities. Its products are widely used in the telecommunications, broadband, broadcast, and networking industries. The company has a large number of production equipment and testing equipment with the advanced international level and has established an optical cable technology research and development centre. We have been serving China Radio and Television and China Tower for many years. In terms of products, we have obtained a certificate of network access certification from China Radio and Television. In terms of management, the company has obtained ISO9001 Quality Management System Certification, ISO14001 Environmental Management System Certification and ISO45001 Occupational Health & Safety Management System Certification.
Providing customers with sophisticated equipment, advanced technology, perfect quality system, efficient marketing network, the quality of the company's products and services have been fully guaranteed and won the trust of the market and users. Our products sell well in more than 20 provinces and cities in China, and our company also established more than ten provincial and municipal sales and service outlets to ensure a quick response within 4 hours to provide customers with better service. Currently, our company has developed into a substantial production base for optical communication cable, coaxial cable and data cable in Southwest China. Our company will always adhere to the development concept of "unity, diligence, innovation and sharing", and strive to present better products to the world.
