    24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : cat-5e-UTP
    Certification : ISO9001
    Price : As required
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 winding box day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard

    24AWG ANATEL Non Shield Copper PVC 305m CCA Line 24awg Standard Ethernet Cat5e Lan Cable


    Product description

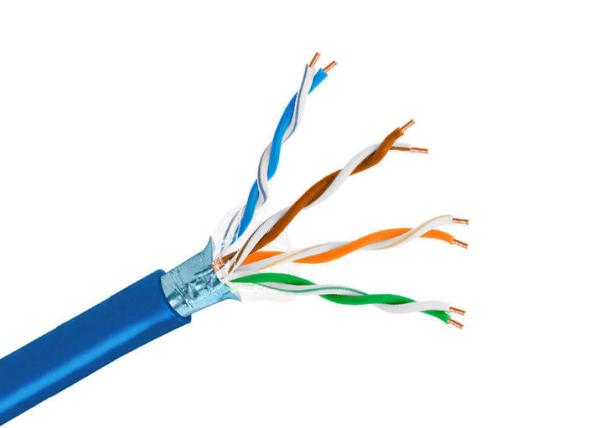

    • Cat5e-ftp-cca is a shielded twisted pair (FTP) category 5E, which is designed for building internal structure network. The shielding layer is made of aluminum foil.
    • The diameter of single chain wire made of copper clad aluminum is 0.515 mm (24awg). The length of the cable is 305 meters.
    • The wire insulation is made of high density polyethylene (HDPE) with high mechanical resistance. The diameter of the insulated conductor is 1.03 mm.
    • The coat made of PVC is gray ral7035. The outer diameter of the cable is 6.2mm.

    Construction

    Connectix Cat

    • Conductor diameter mm: 24 gauge single strand copper
    • Insulation diameter mm: 0.92 HDPE FRP 100% FEP
    • Outer cover diameter mm: 5.3
    • Minimum bending radius (standing): 0. D.x.6
    • Minimum bending radius (installation): 0. D.x.8
    • Maximum tension n: 86.6
    • Skin: frpvc
    • Shielding: Polyester aluminum film / polyester film / tinned copper mesh
    • Ground wire: 24awg gauge tinned single copper wire
    • Packing: carton

    Appliacation

    • Internet Intranet
    • CAD (computer graphics) cam (numerical control manufacturing), broadband environment for medical, financial, banking and building installation
    • VOIP voice over IP (VoIP)
    • Gigabit Ethernet
    • 100Mbps distributed data interface
    • ATM155

    ▌Parameter


    onstructionIndoor generic cabling (FTP) category 305m CCA line 24awg standard Ethernet Cat5e Lan cable
    Operating temperature (T-T)-20˚C to +70˚C
    Conforms toIEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
    Fire RatingCca,s1.d0,a1
    Inner Conductor24 AWG plain copper
    InsulationHigh density polyethylene
    Colour CodePair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
    JacketFR-LSZH
    Overall Diameter5.4 +/- 0.4 mm
    Min. Bending Radius Installation44mm
    Min. Bending Radius Installed22mm
    DC Resistance< 9.4 Ω/100 m
    Velocity Ratio69%
    Installation temperature (T-T)0˚C to +50˚C

    Mechanical Properties


    Bending radiusInstallation8 x D
    Installed4 x D
    Temperature rangeDuring operation-40°C to + 85°C
    During installation-15°C to + 50°C
    Fire load4 pair515 MJ/km
    Maximum tensile loadDuring operationNo load
    During installation130 N

    Electrical Properties at 20°C


    DC loop resistance£ 158 Ω/km
    Resistance unbalance£ 2%
    Insulation resistance(500 V)³ 5000 MΩxkm
    Capacitanceat 800 HzNom. 43 nF/km
    Capacitance unbalance(pair to ground)£ 1500 pF/km
    Mean Characteristic impedance@ 100 MHz)100 ± 5 Ω
    Nominal velocity of propagation0,75c
    Propagation delay£ 450 ns/100 m
    Delay skew£ 15 ns/100 m
    Transfer impedanceat 1 MHz£ 10 mΩ /m
    at 10 MHz£ 8 mΩ /m
    at 30 MHz£ 10 mΩ /m
    Coupling attenuation³ 85 dB
    Segregation classificationAcc. to EN 50174-2“D”

    Nominal Transmission characteristics at 20°C


    F


    (MHz)

    Attenuation


    (dB/100m)

    NEXT


    (dB)

    ACR


    (dB/100m)

    Return loss


    (dB)

    PS-NEXT


    (dB)

    PS-ACR


    (dB/100m)

    ELFEXT


    (dB/100m)

    PS-ELFEXT


    (dB/100m)

    12,1908887858582
    44,090862787838582
    106,390843087817976
    168,090823087797572
    209,090813087787370
    31.2511,490793087766966
    62.5016,586703083676360
    10021,383623080595956
    155.0024,281572678545754
    200.0031,578472575445350
    250.0035,877412574385148
    300.0047,173262370234744
    600.0060,17111206884441

    ▌Product mix

    24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard

    Panking


     24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard 24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg StandardCable weightGross weight
    9.3kg10kg
    Box size (CM)Specifications
    21.5×35×35305m/box

    Application scenario


    24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard
    Network TVDesktop computerNotebook computerPrinter
    24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard24AWG ANATEL Non Shield Copper PVC cat5e 305m CCA Line 24awg Standard
    RouterSet top boxCabinetCamera

    Frequently asked question (FAQ)

    Q: Are you a cable and wire manufacturer?
    — Yes, we are a professional wire and cable manufacturer.

    Q: Can you offer a discount on cables?
    — The price is negotiable according to the specification and quantity.

    Q: Can you offer FREE samples?
    — Yes,FREE samples are available, you just take care of the freight fee.

    Q: What about your MOQ?
    — Usually, our MOQ is 5000 Meters, but we’ d love to talk about your MOQ.

    Q: Do you accept customize cables?
    — Yes, we are more than happy to make OEM and ODM for you.

    Q: How long is the lead time?
    — Usually it’s about 10-14 days.
