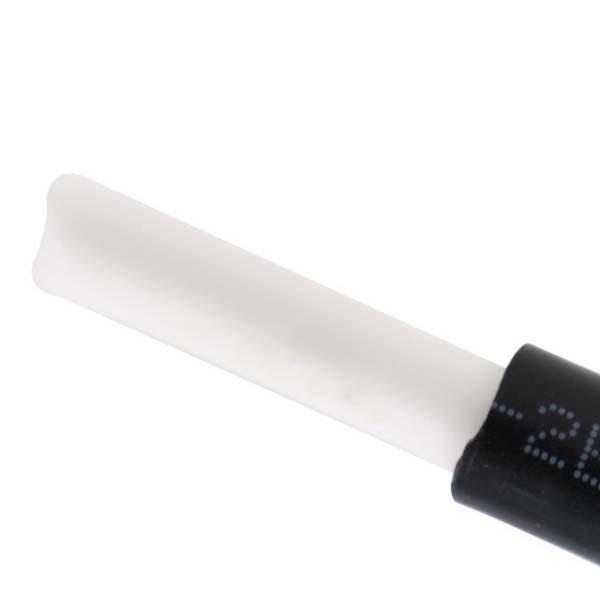

Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof

    Buy cheap Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof from wholesalers

    Buy cheap Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof from wholesalers
    • Buy cheap Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof from wholesalers
    • Buy cheap Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof from wholesalers

    Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : RG11
    Price : USD 0.7-1.32 Meters $1.32
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Kilometer/Kilometers per Day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof

    Cable Indoor And Outdoor High Temperature Resistant Waterproof PE RG11 Engineering Custom Coaxial Closed Circuit Cable


    Product overview


    Cable RG11 consists of one or more conductors that are insulated from each other and are covered with an insulating layer to transmit electricity or information. It is a kind of cable similar to a rope. It is usually made of several sets of conductors twisted together and cut off from each other


    Features

    • High purity oxygen-free copper core, copper core is made of high quality high-precision oxygen-free copper,
    • Strong electric conductivity, not easy to heat, stable.
    • The copper core adopts 999% oxygen free copper, and each index of the product
    • National standard, small resistance, good conductivity.
    • The jacket adopts new PVC+ foam insulator to prevent the additionLead, cadmium, mercury and other harmful metals, the vast
      any non insuranceProtective substance.
    • AVoid adverse effects on the hum
    • Low escentricity and unitorm thickness.
    • Adopt new PVC sheath elecric
    • The low eccentricity of the cable can effectively prevent the current from breakdown,More secure use, shielding network

    Construction and Dimension


    Item
    RG59
    RG58
    RG6
    RG7
    RG11
    Material of inner conductor
    Cu
    Cu
    Cu
    Cu
    Cu
    Diameter of inner conductor(mm)
    0.81±0.02
    19*0.20±0.01
    1.00±0.02
    1.29±0.02
    1.63±0.02
    Material of dielectric
    Foam PE
    PE
    Foam PE
    Foam PE
    Foam PE
    Diameter of Dielectric(mm)
    3.66±0.15
    2.95
    4.57±0.01
    5.72
    7.11
    Material of Shield
    ALfoil+Al brading
    BC/TC braiding
    ALfoil+Al brading
    ALfoil+Al brading
    ALfoil+Al brading
    Coverage
    40%--95%
    95%
    40%--95%
    40%--95%
    40%--95%
    Diameter of 1st outer conductor
    3.9
    -
    4.9
    5.9
    7.52
    (mm)
    Diameter of 2nd outer conductor
    4.12
    --
    5
    -
    7.8
    Material of Jacket
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    PVCPE
    Diameter of Jacket
    6.3
    4.95
    6.9
    8.1
    10.16

    RG59 Coax ConstructionOD/ (mm)
    ConductorSolid Copper0.81
    DielectricPhysical Foam Polyethylene3.66
    ShieldBonded Aluminum Foil+Aluminum BraidNom.4.10
    JacketPVC or Polyethylene6.1
    PVC

    RG 58 Cable Physical Characteristics
    Weight per5kg
    Minimum bend radius32mm
    Operating temperature rangePVC:-25℃ to +75℃
    PE:-45℃ to +80℃
    RoHS compliance2011/65/EU (RoHS)

    RG-59 Cable Electrical Characteristics
    Impedance75+/- 2 ohms
    Capacitance52pF/m. max
    Maximum voltage5000Volts
    Velocity of propagation85%
    Operating Frequency1GHz
    Screening effectiveness≥ 40dB (up to 1 GHz)
    Insulation resistance≥ 1 x 108MΩm
    Max. operating voltage≤ 3.0kVrms (at sea level)

    RG59 Attenuation
    Freq(MHz)Typical(dB/m)Max. CW power
    1000.105319
    3000.189184
    5000.249143
    7000.3121
    9000.346106
    10000.367101

    ▌Parameter


    Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof

    projectMaterial ScienceDiameter (mm)
    1. Inner conductorBare copper wire1.02
    2. InsulatorFoamed polyethylene4.57
    3. Outer conductorSelf adhesive aluminum foil + aluminum magnesium wire braidingNom.5.22
    4. SheathPolyvinyl chloride (PVC)6.91
    Polyethylene (PE)

    goodsRG6 RG59 coaxial cable with power cord
    Minimum order quantity30000 meters
    Conductor materialCopper / CCS
    insulationFoam / solid PE
    Woven36W, 48W, 64W, 96w, 112W, 128W or customized
    JacketPVC

    Application
    Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant WaterproofIndoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant WaterproofIndoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof
    Rack connection of equipment, transmission of closed-circuit television (CCTV), common antenna system (MATV) and color or monochrome RF monitor. These applications do not require the selection of precision video coaxial cables with particularly strict electrical tolerances. The characteristic resistance of video coaxial cable is 75 ohms, which is not optional. Physics has proved that the optimal attenuation characteristic of video signal occurs at 77 ohms. In low-power applications, the material and design determine that the optimal impedance of the cable is 75 ohms.

    Packaging:


    Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof

    1. Standard Packaging:
    Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
    2. Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.
    a. Supplier: Guanglian or as customer required

    b. Standard Code(Product Type, Fiber Type,Fiber Count)
    c. Year of manufacture: 20 years
    d. Length marking in meters.

    Our Service:
    1. We are the one of biggest manufacture of cable in China and has more than 20 years manufacturing and selling experience.
    2. We accept OEM. The cable size and material are customized.
    Ur own logo and own design are welcome. We will produce
    according to your requirment and description;
    3. Please send us inquiry for more products info and we will
    give you feedback in 12 hours.

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B.Secondly We quote according to your requirements or our suggestions.
    C.Thirdly customer confirms the samples and places deposit for formal order.
    D.Fourthly We arrange the production.

    Quality Indoor And Outdoor PE Rg11 75 Ohm Coaxial Cable High Temperature Resistant Waterproof for sale
