GJFJV 12 core indoor distribution optical fiber cable cctv cable

▌Product Description

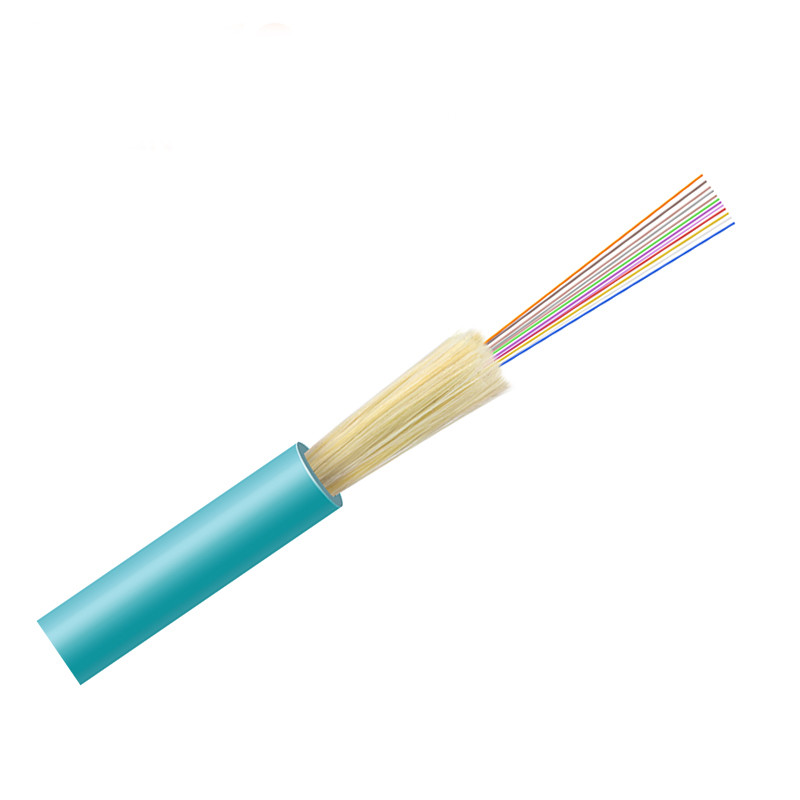

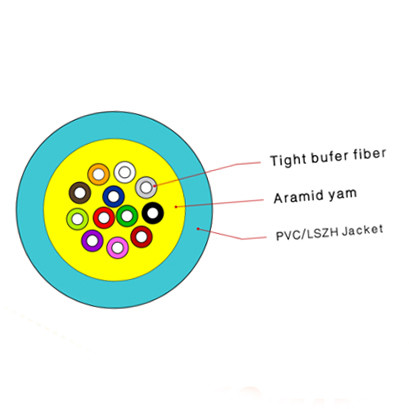

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

▌Products Features

· Small diameter, light weight,flame retardant,excellent strippability

· Low-attenuation,High flexibility

· No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.

Products Standard

·GJFJV cable complies with Standard YD/T1258.2-2009,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.

▌Fiber Code

▌Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥200MHZ·km
	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

▌Application scenario

▌FAQ

1. Are you the real manufacturer? Yes. We are the real manufacturer with more than 110 staff. 2. How many years have you been in the field of fiber optics ? Since 1998. 3. Can you accept small order? Yes, small order is available .We support new project of our customers as we know business is always from small order. 4. What is your warranty period? 25 years for fiber optic cable 5. Which kind of certification you have ? ISO9001, SGS, RoHs. 6. What is your delivery time? Usually within 2-3 working days 7. What about your annual production capacity? Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM; FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year; Patch Cord/Pigtails, it is 12,400,000 Pieces per year. 8. What is your payment way? T/T, L/C, Western Union and Paypal. 9. Can you supply customized products and logo? Yes. We supply OEM&ODM service. You can send us your drawing.
