    FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : PDB
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg

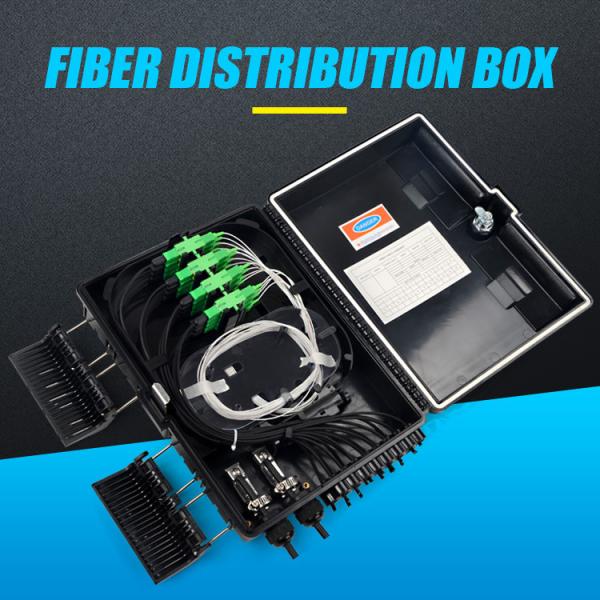

    FTTH indoor/outdoor fiber to the home distribution box Termination fiber optic distribution box


    Description


    The series of fiber optic distribution boxes are suitable for use at the handover point

    of armored fiber optic cable and household drop cable in the fiber access network.

    The cabinet adopts wall-mounted or pole-mounted installation, which is suitable for

    indoor and outdoor use; SC-type optical fiber adapters and quick connectors are

    used to connect and dispatch the outer armored optical cable and the home drop optical cable.


    Performance indicators


    Working temperature: -40℃~+70℃;
    Storage temperature: -40℃~+70℃;
    Working humidity: ≤90% (at +30℃);
    Atmospheric pressure: 62Kpa~106Kpa;
    Insulation resistance: the insulation resistance between the grounding device and the box

    metal workpiece is not less than 2X104MΩ/500V(DC);
    Withstand voltage: The withstand voltage between the grounding device and the box metal

    workpiece is not less than 3000V (DC)/1min;
    Insertion loss: IL≤0.3dB (PC type); IL≤0.3dB (APC type);
    Return loss: RL≥40dB (PC type); RL≥50dB (UPC type); RL≥60dB (APC type);
    Interchangeability: ≤0.2dB.


    Product nameFiber Optic Distribution BoxIP RateIP65
    Product ModelFDB-

    Product Size

    Inner Box Size

    310*235*110 mm

    325*250*120 mm

    Ports

    2 inlet port 12.5mm

    16 out port 11.5mm

    uncut design midspan port

    Packing Quantity

    10 pcs / carton

    66*26*58cm 14.6kg

    Compatible with

    1:16 cassette splitter or

    16 core adapter pigtail

    MaterialPC ABS
    Installation Typewall / pole-mountedNet weight1.45kg
    Accessories1. Wall mounting kits : 4 pieces
    2. Screws : 4 pieces
    3. Cable tie: 10 pieces
    4. Heat shrink protective sleeves: 16 pieces
    5. Key :1 piece
    6. Inlet accessories:1 set
