    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYTC8S
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    GYTC8S 24 Core Figure 8 Armored Self-Supporting Steel Fiber Optic Cable


    Description

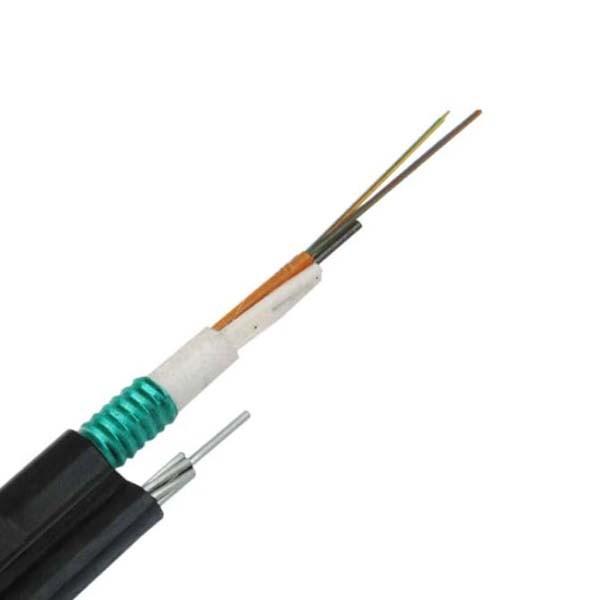

    The structure of GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core (also non-metallic, such as FRP, etc.), and the loose tube (and filler rope) is twisted around the central reinforced core to form a compact circular cable core. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.


    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S


    Product Standards


    GYTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.


    Features


    1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit

    2. Stable fiber excess length control

    3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change

    4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃


    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S


    Technical data

    Cable Type
    Fiber Count
    Cable Diameter mm
    Cable Weight kg/km
    Tensile Strength
    Crush Resistance
    Bending Radius
    Long/Short Term
    Long/Short Term
    Static/Dynamic
    N
    N/100mm
    mm
    GYTC8S
    2-30
    9.8*18.5
    166
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    32-48
    10.6*19.3
    180
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    50-60
    10.6*19.6
    190
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    62-72
    11.3*20.3
    217
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    74-84
    12.7*21.7
    252
    2000/6000
    300/1000
    10D/20D
    GYTC8S
    86-96
    12.7*21.7
    252
    2000/6000
    300/1000
    10D/20D

    Details

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    Fiber Core

    1. Corning/YOFC/FiberHome/Fujikura Fiber Core Options


    2. Single Mode/Muli Mode Options


    3. 12 different Colors Option, can do as your request

    Armored

    PSP/APL Armored,.Plastic coated steel strip Increase the mechanical strength of the GYTC8S cable


    Improve corrosion resistance


    7*1.0mm Steel for Overhead, Aerial


    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S

    PE Outer Jacket Material

    High Quality New PE Material


    1. Smooth appearance


    2.Flame retardant


    3.Corrosion protection


    4.Long service life


    Application

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S


    Packing

    Figure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8SFigure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8SFigure 8 Self-Supporting Fiber Optic Cable 24 Core Steel Armored Cable GYTC8S
