MDPE/HDPE Double Sheath 8 Core GYTA53 Armored Outdoor Fiber Optic Cable

▌Product overview

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

▌Feature

· Full section water blocking structure to ensure good water blocking and moisture-proof performance;

· The loose tube is filled with special ointment to protect the optical fiber;

· Phosphating steel wire central reinforcing member has high modulus and corrosion resistance;

· Longitudinally wrapped double-sided film covered corrugated steel tape armor, effectively improving the lateral pressure resistance of optical cable;

· The service life of the product is more than 30 years.

▌APPLICATION

♦ Adopted to Outdoor distribution fiber optic cable system .

♦ Suitable for aerial .duct pipeline, direct burried installation lashing menthod

♦ Long distance and local area network(LAN) communication system.

▌Standards

▌Technical Specification

▌Optical Characteristic

▌Order Information

▌Product diagram

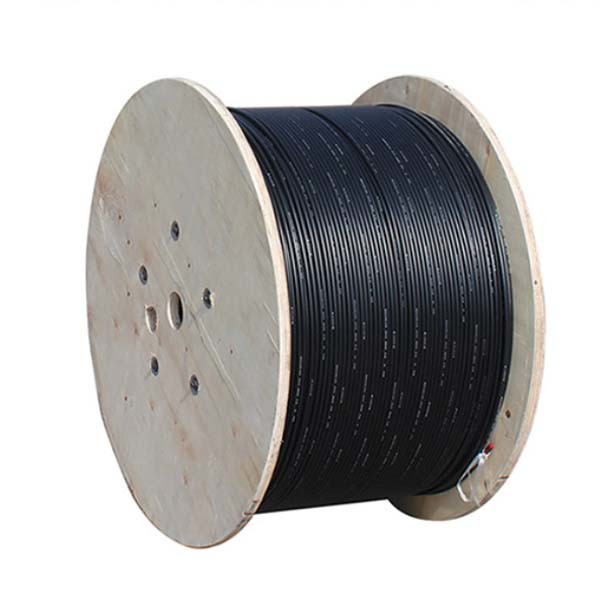

▌Packaging

			Number of cores	packaging	volume			Packing weight
					diameter	height	Middle hole diameter
			2	wood	650	1100	400	50
			4	wood	650	1100	400	50
			6	wood	650	1100	400	50
			8	wood	650	1100	400	50
			12	wood	650	1100	400	50
			24	wood	650	1100	400	50
			36	wood	650	1200	450	65
			48	wood	650	1200	450	65
			72	wood	650	1300	450	80
			84	wood	650	1300	450	80
			96	Wood + steel frame	800	1400	750	90
			144	Wood + steel frame	800	1600	750	95
			288	Wood + steel frame	800	1600	750	95

▌FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 31 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
