    250μm 8Core Figure 8 Fiber Optic Cable G652D Single Mode Optical Fiber Cable For Outdoor

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYTC8A
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

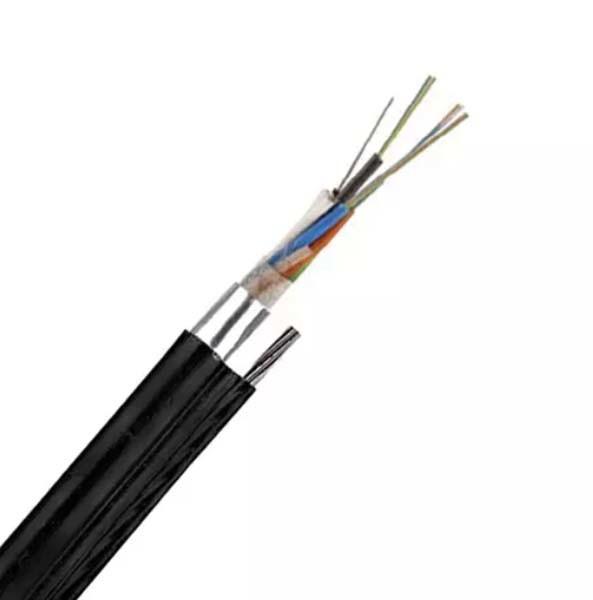

    250μm 8Core Figure 8 Fiber Optic Cable G652D Single Mode Optical Fiber Cable For Outdoor

    8Core Figure 8 G652D Single Mode Optical Fiber Cable For Outdoor


    Description


    1. 250μm Coloured Fiber

    2. PBT loose Tube

    3. Tube Filling Compound(Gel)

    4. APL Moisture barrier

    5. Stranded wires as the self-supporting messenger


    Features

    1. With good mechanical properties and temperature characteristics

    2. Material of loose tube has good hydrolysis resistance and high strength

    3. The loose tube is filled with special gel, which protect the optical fiber

    4. Specially designed compact cable structure to effectively prevent casing from retracting

    5. Anti-UV PE out sheath

    6. Take the following measures to ensure the waterproof performance of the optical cable

    - Single steel wire center reinforced core

    - Filled with special Water-blocking material in loose tube

    - Complete cable core filling

    - Moisture-proof layer of plastic-coated aluminum tape (APL)


    Specification

    250μm 8Core Figure 8 Fiber Optic Cable G652D Single Mode Optical Fiber Cable For Outdoor

    Application : self-supporting aerial


    Installation method : self-supporting aerial

    Operating temperature : -40℃ ~ +70℃

    Permisson bent radius

    Static :10 times O.D.

    Dynamic :20 times O.D.

    Technical data
    Fiber Num.
    Outer diameter (mm)
    Weight (kg/km)
    Tension (N)
    Crash loading (N/100mm)
    Short term
    Long term
    Short term
    Long term
    2-30
    9.5*18.2
    150
    ≥6000
    ≥2000
    ≥1000
    ≥300
    32-48
    10.2*18.9
    162
    50-60
    10.2*19.2
    173
    62-72
    10.2*19.2
    197
    74-84
    12.1*21.1
    217
    86-96
    12.1*21.1
    217

    Model No.Fiber countCasingFilled ropes

    Weight

    (kg/km)

    Tension
    (N)

    Crush

    (N/100mm)

    GYTA-2~6Xn2~61476600/1500300/1000
    GYTA-8~12Xn8~122376
    GYTA-14~18Xn14~183276
    GYTA-20~24Xn20~244176
    GYTA-26~30Xn26~305076
    GYTA-32~36Xn32~366085
    GYTA-38~48Xn38~484190
    GYTA-50~60Xn50~605090
    GYTA-62~72Xn62~7260113
    GYTA-74~84Xn74~8471136
    GYTA-86~96Xn86~9680136
    GYTA-98~108Xn98~10891163
    GYTA-110~120Xn110~120100163
    GYTA-122~132Xn122~132111190
    GYTA-134~144Xn134~144120190
    GYTA-146~216Xn146~21613~185~0190
    GYTA-288Xn288240239

    Storage and use temperature: -40 °C to +70 °C.


    Production and Quality Test

    250μm 8Core Figure 8 Fiber Optic Cable G652D Single Mode Optical Fiber Cable For Outdoor


    250μm 8Core Figure 8 Fiber Optic Cable G652D Single Mode Optical Fiber Cable For Outdoor


    FAQ

    1. Are you the real manufacturer?
    Us. We are the real manufacturer with 31 year’s history.
    2. What’s the MOQ?
    Us. The MOQ of Fiber Optic cable is 10km.
    3. What’s delivery time?
    Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
    4. How to Store the Optical Fiber Cable Properly?
    Us. Store the drum indoor before using, the drum should place sideways not on the end.
    5. Can you supply customized products and logo?
    Yes. We supply OEM service. You can send us your drawing.
    6. What’s your payment terms?
    Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
