2 Core Single Mode G652D/G657A LSZH Sheath GJXH FTTH Fiber Optic Cable​

▌Detailed Product Description

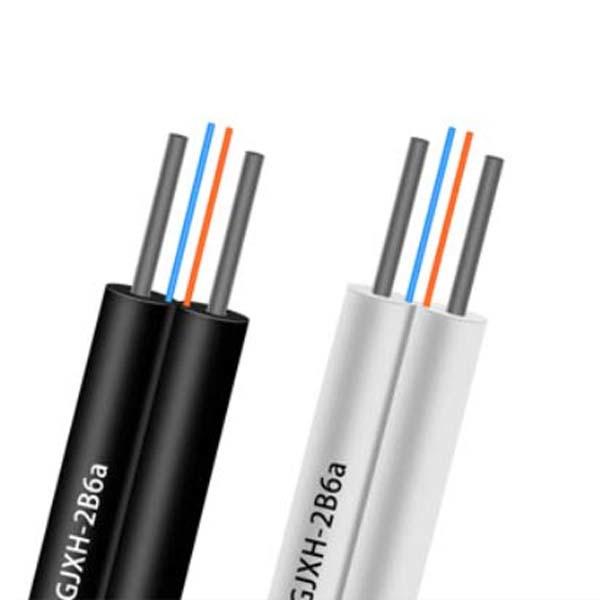

Butterfly lead-in optical cable (gjxh optical cable) is to place the optical fiber in the center, place two parallel steel wires on both sides as reinforcing elements, and extrude low smoke halogen-free flame retardant sheath into a cable.

▌Application

This product is widely used in network engineering installation, communication room, optical fiber transfer box optical fiber cabinet, optical fiber connection and other places

▌Characteristics

1. Small diameter, light weight and strong practicability;
2. the structure is simple and reasonable, and has good compressive, tensile and anti-aging properties.
3. The '8' groove design is easy to peel off the sheath and simplify installation and maintenance;
4. Small bending radius and excellent flexibility meet various indoor wiring environments from optical fiber to home;
5. The fiber core conforming to and superior to ITU G.657 standard is adopted, which has the highest cost performance among the products of the same type at present;
6. Recommended application occasions of FTTH: no weak current pipeline or surplus space, no ceiling on the flat floor, distribution box to floor terminal box, floor distribution box to end points in each user's room, old area reconstruction and residential area

▌General Specifications:

▌Fiber Specifications:

Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	≧1180,≤1330	≧1180,≤1330	≧1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4

▌Product mix

▌Standard Color Identification of Fiber

No.	1	2	3	4
Color	Blue	Orange	Green	Brown

▌Cable Design

Item	Description
Model No	GJXH/GJFXH
1. Fiber count	1 Core , 2 Core, 4 Core
2. Cable Diameter	3.0*2.0mm
3. Cable Weight	11.5KGS/9.5KGS
4. Strength member
-Material	Steel/FRP
-Diameter	0.45mm
5.Outer Sheath
-Material	LSZH (Black/white)
6. Sheath marking
-Type of marking	Laser printing

▌Packing
