Brand Name : | Aitong |
Model Number : | Cat6 FTP Lan Cable |
Certification : | ISO9001 |
Price : | Negotiate |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 100 Rolls/Day |
Delivery Time : | 5-8 Days |

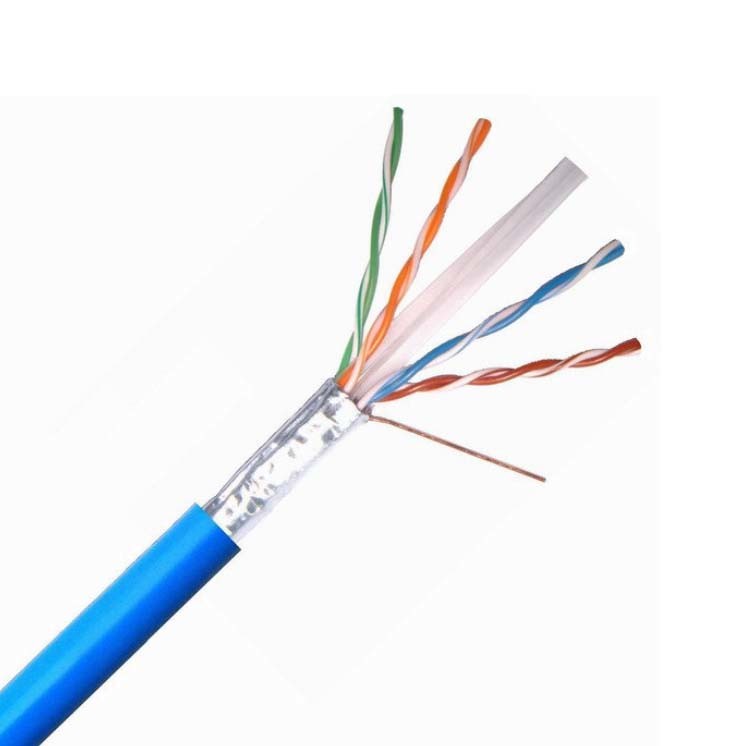

CAT6 FTP CCA conductor PVC+PE Double sheath Lan Cable For Network
Specification
Structure | 4P + F +MEA Twisted Pair | Rated Temperature | 75℃ |
Conductor | CCA | Impedance | 100±15%Ω |
Insulation | HD-PE | Frequence | 250MHz |
Jacket | PVC or LSZH | ||
Shield | Mylar | Shielded | AL-Foil 125%(min)Coverage |
Reference Standard | YD / T 1019-2001.ISO / IEC 11801.ANSI / TIA / EIA-568B.UL444 | ||
Flame Retardancy Standard | ISO9001 | Ground Wire | Soild or stranded bare copper |
Model | Name | AWG | Conductor (mm) | Nominal od (mm) | Ω/km Conductor resistance | Package | Color |
607 | CAT6 FTP | 23 | 1/0.56 | 6.87 | 74.30 | 305m/box | Optional |
608 | CAT6 FTP | 23 | 1/0.574 | 7.60 | 70.08 | 305m/box | Optional |
609 | CAT6 FTP | 23 | 1/0.58 | 7.60 | 68.50 | 305m/box | Optional |

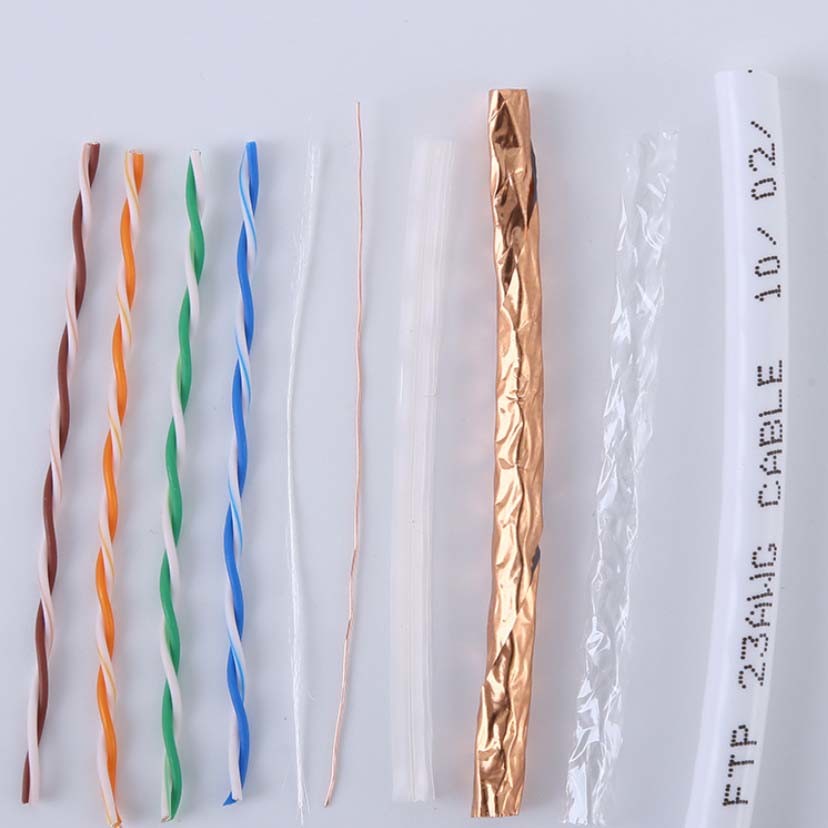

Material
A new performance evaluation index is determined for the six types
of cables. Single core bare copper with specification of 23AWG is
used as conductor, polyethylene polymer material is used as
insulator, and flame retardant polymer material is used as outer
skin material with color of gray. Twisted-pair cables meet the
requirements of international specification (ISO/IEC), electrical
characteristics exceed the requirements of international
specification (CAT.6), cable center cross isolation to ensure NEXT
performance and reasonable construction bending radius. LSZH: "Low
smoke and no halogen". Low smoke halogen free material can meet the
requirements of safety and environmental protection.
Cable used
The cross skeleton in the center of the cable rotates with the
change of length. The four pairs of twisted pair cables are stuck
in the groove of the skeleton to maintain the relative position of
the four pairs of twisted pair cables and improve the balance
characteristics of the cable and crosstalk attenuation.
Advantages
For voice, Integrated Service Data Network (ISDN), ATM155Mbps and
622Mbps, 100MbpsTPDDI, Fast Ethernet and Gigabit Ethernet; Compared
with class 5 and super class 5, it has the characteristics of long
transmission distance, small transmission loss, wear resistance and
pressure resistance.
![]() | ![]() |
Application
![]() | ![]() | ![]() | ![]() |
Production Line and Quality Test
Packing
![]() |
