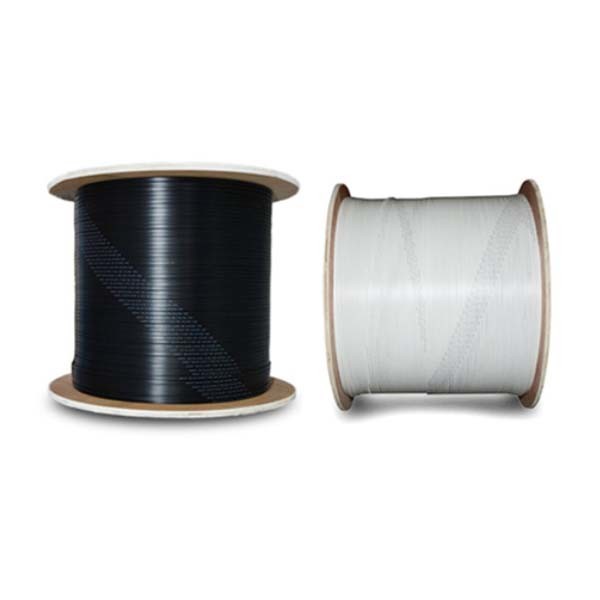

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GJYXFCH
    Certification : ISO9001,ISO9001/CE/RoHS
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B

    GJYXFCH 1B Colour Customized FTTH Single Mode Drop Cable With Steel MessengerThe Cable Is Specially Designed In Elastic


    Description


    The FTTH Single Mode Drop Cable GJYXFCH-1B optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

    A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
    Characteristics
    1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
    2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
    3. Single steel wire as the additional strength member ensures good performance of tensile strengh.
    4. Simple structure, light weight and high practicability.
    5. Curve, the g. 657 a1 is not sensitive to the wing of the fiber optical cable has excellent bending resistance, wash cloth and small space a corner in the indoor environment, will not affect the optical cable transmission loss

    Features

    • Compact structure of protable, convenient for indoor wiring.
    • Excellent resistance to lateral pressure protection design.
    • Butterfly optical cable with G.657A1 bending insensitive fiber has excellent bending resistance, and will not affect the transmission loss of the cable when it is placed in indoor turning and small space environment

    Applications


    1. Used in indoor outdoor cabling,especially used for FTTH.
    2. Used as access building cable.


    Cable Parametres

    Model No.Fiber count (core)Cable diametre (mm)Weight (kg/km)Tensile Strength Long/Short Term (N)Crush Resistance Long/Short Term (N)Bending Radius
    Static/Dynamic
    (mm)
    GJYXCH1(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH2(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH4(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30

    Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
    Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
    UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G652D0.36/0.2216
    G657A10.36/0.2210
    G657A20.36/0.227.5
    50/1253.0/1.0≥500/50030
    62.2/1253.0/1.0≥200/50030
    OM33.0/1.0≥1500/500≥2000≥30030
    OM43.0/1.0≥3500/500≥4700≥55030
    B1-OM33.0/1.0≥1500/500≥2000≥3007.5
    B1-OM43.0/1.0≥3500/500≥4700≥5507.5

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B


    We produce and test cable comply with following standard

    Mechanical Performance
    Max Tension PerformanceIEC 60794–1-2-E
    Max. Operation TensionIEC 60794–1-2-E1
    Crush TestIEC 6079 –1-2-E3
    Impact TestIEC 60794–1-2-E4
    Repeated BendingIEC 60794–1-2-E6
    Torsion TestIEC 60794–1-2-E7
    Cable bendIEC 60794–1-2-E11A
    Attenuation CoefficientITU-T G.652
    Structural TestIEC-60793-1-20
    Environmental Performance
    Temperature CyclingIEC 60794–1-2-F1
    Water PenetrationIEC 60794–1–2-F5B
    Filing Compound FlowIEC 60794-1-E14

    Why Choose Us?


    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B


    Production and Qulaity Test

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B


    Packing and Delivery

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1BLSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B

    LSZH Jacket FTTH Single Mode Optical Fiber Drop Cable Designed In Elastic GJYXFCH 1B

    FAQ

    1. Are you the real manufacturer?
    Us. We are the real manufacturer with 31 year’s history.
    2. What’s the MOQ?
    Us. The MOQ of Fiber Optic cable is 10km.
    3. What’s delivery time?
    Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
    4. How to Store the Optical Fiber Cable Properly?
    Us. Store the drum indoor before using, the drum should place sideways not on the end.
    5. Can you supply customized products and logo?
    Yes. We supply OEM service. You can send us your drawing.
    6. What’s your payment terms?
    Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
