    National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GJYXFCH
    Certification : ISO9001,ISO9001/CE/RoHS
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B

    National Standard Signal Grade GJYXFCH-1B Outdoor 1 Core Skin Cable Single Mode Optical Fiber Cable


    Description

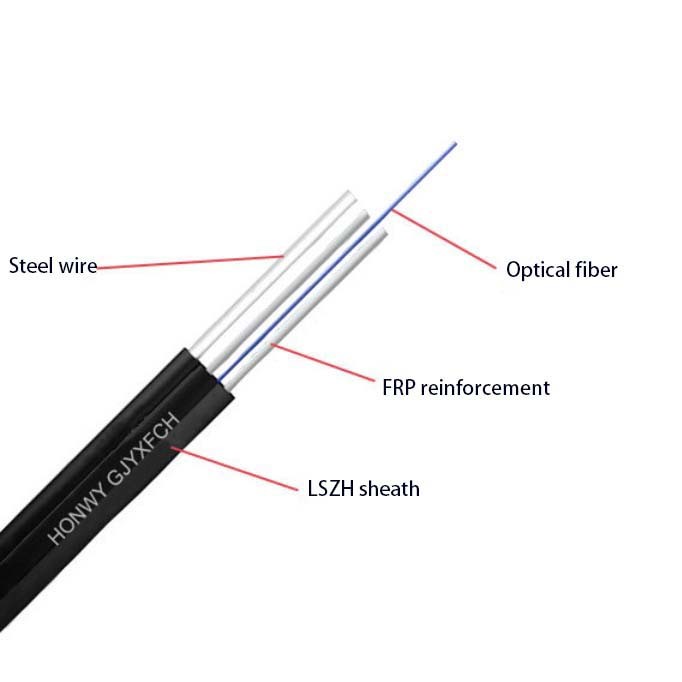

    The GJYXCH FTTH optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

    A steel wire as the additional strength member is also applied.Then, the cable is completed with a black or color LSZH sheath.
    Characteristics
    • Indoor metal strengthening core single core GJXH 1 b6a, indoor metal strengthening core double core b6a GJXH 2
    • Indoor single-core GJXFH 1B6a, indoor single-core GJXFH2B6a, non-metallic strengthening core
    • Messenger outdoor metal strengthening core single core 1 b6a GJYXCH, messenger outdoor metal strengthening core single core b6a GJYXCH
    • Single steel wire as additional stiffener, to ensure the good tensile strength.
    • Simple structure, light weight, strong practicability.
    • Novel groove design, easy to peel and joining together, easy installation and maintenance.
    • Low smoke, zero halogen flame retardant sheath.

    Features

    • Concave groove design
    • Easy to peel, easy to connect, make the work more simple, using G652 bending fiber core, long transmission distance, good stability
    • Concave groove design, easy to peel, convenient connection

    Applications


    1. Used in indoor outdoor cabling,especially used for FTTH.
    2. Used as access building cable.


    Cable Parametres

    Model No.Fiber count (core)Cable diametre (mm)Weight (kg/km)Tensile Strength Long/Short Term (N)Crush Resistance Long/Short Term (N)Bending Radius
    Static/Dynamic
    (mm)
    GJYXCH1(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH2(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30
    GJYXCH4(2.1±0.1)×(5.1±0.1)211500/2500500/130015/30

    Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
    Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
    UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G652D0.36/0.2216
    G657A10.36/0.2210
    G657A20.36/0.227.5
    50/1253.0/1.0≥500/50030
    62.2/1253.0/1.0≥200/50030
    OM33.0/1.0≥1500/500≥2000≥30030
    OM43.0/1.0≥3500/500≥4700≥55030
    B1-OM33.0/1.0≥1500/500≥2000≥3007.5
    B1-OM43.0/1.0≥3500/500≥4700≥5507.5

    National Standard Signal Grade Optical Drop Cable 1 Core GJYXFCH-1B


    We produce and test cable comply with following standard

    Mechanical Performance
    Max Tension PerformanceIEC 60794–1-2-E
    Max. Operation TensionIEC 60794–1-2-E1
    Crush TestIEC 6079 –1-2-E3
    Impact TestIEC 60794–1-2-E4
    Repeated BendingIEC 60794–1-2-E6
    Torsion TestIEC 60794–1-2-E7
    Cable bendIEC 60794–1-2-E11A
    Attenuation CoefficientITU-T G.652
    Structural TestIEC-60793-1-20
    Environmental Performance
    Temperature CyclingIEC 60794–1-2-F1
    Water PenetrationIEC 60794–1–2-F5B
    Filing Compound FlowIEC 60794-1-E14
