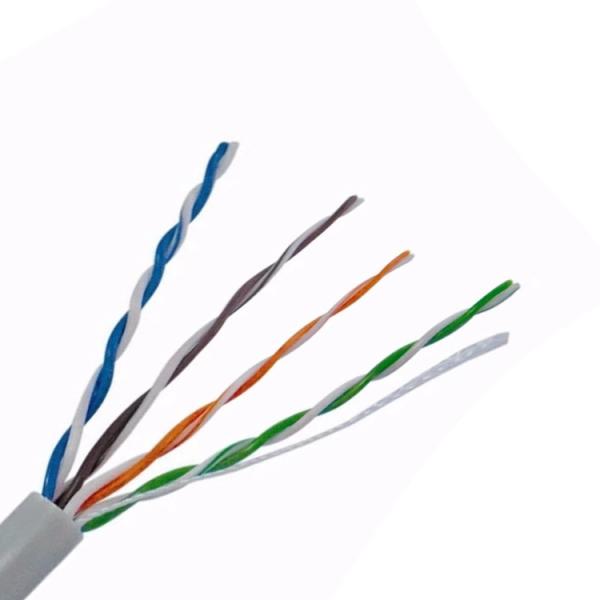

Indoor Wiring Unshielded (UTP) 305m Bare Copper Wire 24awg Standard
▌ Product description
"Category 5" refers to category 5 unshielded twisted pair (UTP) and
category 5 shielded twisted pair. Unshielded twisted pair cable is
composed of multiple twisted pairs and a plastic sheath. Category 5
refers to five different quality levels defined by the
International Electrical Industry Association for twisted pair
cable.
▌Construction
It has the advantages of reduced attenuation, less crosstalk,
transmission distance of 120 meters and resistance of no more than
30 ohms. It is used in 100m network. Super class 5 has low
attenuation and less crosstalk, higher ratio of attenuation to
crosstalk, signal-to-noise ratio and smaller delay error. The
performance has been greatly improved. The maximum transmission
rate of super class 5 line is 250mbps.
▌Standard / Certificate
- Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
- Certificates ISO9001,14000,ROHS.
▌Appliacation
- Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category
5e channel standards.
- Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e
Component standards;
- Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE
applications.
- Foil shield reduces ingress of EMI interference to ensure cable
performance at high frequency levels.
- Length cable marking enable easy identification of remaining cable
which reduces installation time and cable scrap.
- Color Availability: Additional cable colors available.
▌Parameter
| Model | Cat5e UTP Cable |
| Conductor | BC/CCA/CCAG |
| Conductor Size | AWG 24 |
| Number of Conductor | 4 Pairs / 8 Cores |
| Insulation | HDPE |
| Outer Jacket | PVC / LSZH |
| PVC Jacket Color | As your request |
| Certification | CE, RoHS, REACH, UL |
▌Electrical characteristics (20 ° C)
| Frequency | Attenuation(Max) | PS NEXT (Min) | NEXT(Min) | PS ELFEXT (Min) | ELFEXT (Min) | TCL(Min) | EL TCL(Min) | RL(Min) |
| MHz | dB | dB | dB | dB/100m | dB/100m | dB | dB | dB |
| 4 | 4.05 | 53.27 | 56.27 | 48.96 | 51.96 | 44 | 23 | 23.01 |
| 8 | 5.77 | 48.75 | 51.75 | 42.94 | 45.94 | 41 | 16.9 | 24.52 |
| 10 | 6.47 | 47.3 | 50.3 | 41 | 44 | 40 | 15 | 25 |
| 16 | 8.25 | 44.24 | 47.24 | 36.92 | 39.92 | 38 | 10.9 | 25 |
| 20 | 9.27 | 42.78 | 45.78 | 34.98 | 37.98 | 37 | 9 | 25 |
| 25 | 10.42 | 41.33 | 44.33 | 33.04 | 36.04 | 36 | 7 | 24.32 |
| 31.25 | 11.72 | 39.88 | 42.88 | 31.1 | 34.1 | 35.1 | / | 23.64 |
| 50 | 15.07 | 36.82 | 39.82 | 27.02 | 30.02 | 32 | / | 22.21 |
| 62.5 | 16.99 | 35.36 | 38.36 | 25.08 | 28.08 | 30 | / | 21.54 |
| 100 | 21.98 | 32.3 | 35.3 | 21 | 24 | | | 20.11 |
▌Physical characteristics
| Conductor diameter | 0.50 mm (24 AWG) |
| Insulation diameter | 0.90 mm |
| Jacketed tiknes | 0.52 mm |
| Cable diameter | 5.0 mm |
| Distorted pitch (mm) | ≤20 |
| Cable spacing (mm) | ≤130 |
▌Other features
| Delayed tilt (NS / 100 m) | 45 |
| Propagation speed (NVP) | 69% |
| Propagation delay at 100 MHz (NS / 100M) | <537.6 |
| Characteristic impedance (frequency: 1-200 MHz) | 100 ± 15 Ω |
| 30 ° C coupling attenuation | 4.5MHz (dB) |
▌Panking
 |  | Cable weight | Gross weight |
| 9.3kg | 10kg |
| Box size (CM) | Specifications |
| 21.5×35×35 | 305m/box |
▌Application scenario
 |  |  |  |
| Network TV | Desktop computer | Notebook computer | Printer |
 |  |  |  |
| Router | Set top box | Cabinet | Camera |
▌Frequently
asked question (FAQ)
Q: Are you a cable and wire manufacturer?
— Yes, we are a professional wire and cable manufacturer.
Q: Can you offer a discount on cables?
— The price is negotiable according to the specification and
quantity.
Q: Can you offer FREE samples?
— Yes,FREE samples are available, you just take care of the freight
fee.
Q: What about your MOQ?
— Usually, our MOQ is 5000 Meters, but we’ d love to talk about
your MOQ.
Q: Do you accept customize cables?
— Yes, we are more than happy to make OEM and ODM for you.
Q: How long is the lead time?
— Usually it’s about 10-14 days.
