    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : 6 Cores G652D GYXY
    Certification : ISO9001/CE/RoHS
    Price : Negotiation processing
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 km/Day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

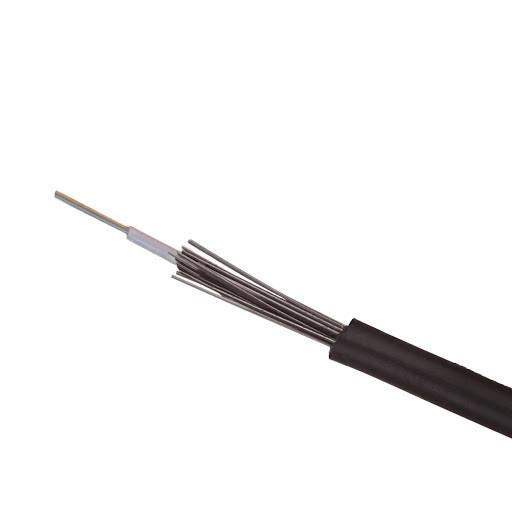

    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode

    GYXTY 6-Core Single-Mode Optical Fiber Line Central Bundle Tube Type Unarmored Outdoor Communication Optical Cable

    Fiber Optics Cables description

    The number of fiber cores can be 2 ~ 24. There are the following optical fibers to choose from: 1. Single mode optical fibers G.652. D (or G.652. B), G.655; 2. Multimode fiber 50 / 125 μ M or 62.5/125 μ m. Om1 om2 OM3 OM4 optional. You can choose to use hybrid fiber according to the actual situation, such as the hybrid use of G.652. D and G.655 fiber.


    Characteristics

    accurate process control ensures good mechanical and temperature performance. • Loose tube material, good hydrolysis resistance and high strength. • The tube filling compound provides critical protection for the fibers.


    Applications

    • Installed in duct, direct burial.
    • FTTx.
    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single ModeUnarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode


    Fiber Color Code

    No.123456
    ColorBlueOrangeGreenBrownGrayWhite
    No.789101112
    ColorRedBlackYellowVioletPinkAqua

    ▌Cable structure and parameter


    Items
    Description
    G.652.D
    G.655
    Attenuation (dB/km)
    (After cable)
    1310nm
    ≤0.36
    ≤0.40
    1550nm
    ≤0.22
    ≤0.25
    Cable cut-off wavelength (mm)
    ≤1260
    ≤1450
    Zero-dispersion wavelength (mm)
    1300~1324
    ≤1520
    Zero-dispersion slope([ps/(nm2·km)])
    ≤0.092
    ---
    Dispersion slope(1550nm) ([ps/(nm2·km)])
    ---
    ≤0.0084
    1310nm Mode field diameter (μm)
    8.7~9.5
    ---
    1550nm Mode field diameter (μm)
    9.8~10.8
    9.1~10.1
    Core/Clad concentricity error (μm)
    ≤0.6
    ≤0.6
    Cladding diameter ( μm)
    125±0.7
    125±0.7
    Cladding non-circularity (%)
    ≤1.0
    ≤1.0
    Primary Coating diameter ( μm)
    (Before be colored)
    235~250
    235~250
    Proof test level (kpsi)
    ≥100
    ≥100
    Atttenuation with bending loss(dB)
    @1550nm,25 mm radius, 100 turns
    ≤0.05
    ≤0.05
    @1550nm,16 mm radius, 1 turn
    ≤0.05
    ≤0.05

    Attenuation and bandwidth of multi mode Optical fiber


    Fiber type
    850/1300nm
    Attenuation(20℃)
    (After cable)
    Overfilled Modal Bandwidth
    Effective Modal Bandwidth
    Application support distance on
    (at 850nm)
    Typical value
    Max value
    850/1300nm
    850nm
    40GBASE-SR4 / 100GBASE-SR101
    10GBASE-SR
    1000BASE-SR
    unit
    dB/Km
    dB/Km
    MHz.Km
    MHz.Km
    m
    m
    m
    50/125
    3.0/1.0
    3.3/1.2
    ≥500/500
    ---
    ---
    ---
    ---
    62.5/125
    3.0/1.0
    3.3/1.2
    ≥200/500
    ---
    ---
    ---
    ---
    OM2+
    3.0/1.0
    3.3/1.2
    ≥700/500
    ≥950
    ---
    140
    170
    OM3
    3.0/1.0
    3.3/1.2
    ≥1500/500
    ≥2000
    150
    300
    550
    OM4
    3.0/1.0
    3.3/1.2
    ≥3500/500
    ≥4700
    750
    1000
    1100

    Outer diameter and unit weight
    Fibre countNominal Cable diameterNominal Cable weight
    (cores)(mm)(kg/km)
    2~128.268
    14~249.282
    Note: The outer diameter and unit weight of the optical cable in this table are for reference only, not as the basis of the contract. Please contact the sales personnel of our company for specific parameters.
    Mechanical and Environmental Properties
    DetailsParameterValue
    Tensile Performance:Long term loadLoad: 900 N
    IEC 60794-1-21-E1Short term load,during installationLoad: 2700 N
    Crush Performance:Long term loadLoad : 750 N
    IEC 60794-1-21-E3AShort term loadLoad : 1500 N
    Bending Performance:Handling fixed installedBend radius: 10 x D
    IEC 60794-1-21-E11During installation (under load)Bend radius: 20 x D
    Temperatures:Operation-40~+70℃
    IEC 60794-1-22-F1Installation-15~+60℃
     Storage/Shipping-40~+70℃

    ▌Roduction and Quality Test

    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode


    Application

    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode


    Packaging

    Unarmored Outdoor Communication Fiber Optics Cables GYXTY 6 Core Single Mode

    1. Standard Packaging:
    Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
    2. Sheath mark:
    The following printing(white hot foil indentation)is applied at 1meter intervals.
    a. Supplier: Guanglian or as customer required
    b. Standard Code(Product Type, Fiber Type,Fiber Count)
    c. Year of manufacture: 7 years
    d. Length marking in meters.

    Our Service:
    1.We are the one of biggest manufacture of fiber optic
    cable in China and has more than 10 years manufacturing
    and selling experience.
    2.We accept OEM. The cable size and material are customized.
    Ur own logo and own design are welcome. We will produce
    according to your requirment and description;
    3.Please send us inquiry for more products info and we will
    give you feedback in 12 hours.


    FAQ
    1. Are you the real manufacturer?
    Us. We are the real manufacturer with 23 year’s history.
    2. What’s the MOQ?
    Us. The MOQ of Fiber Optic cable is 10km.
    3. What’s delivery time?
    Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
    4. How to Store the Optical Fiber Cable Properly?
    Us. Store the drum indoor before using, the drum should place sideways not on the end.
    5. Can you supply customized products and logo?
    Yes. We supply OEM service. You can send us your drawing.
    6. What’s your payment terms?
    Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
