GCYFY 96 Core G652d Micro Duct Long Distance Fiber Optic Cable For Outdoor

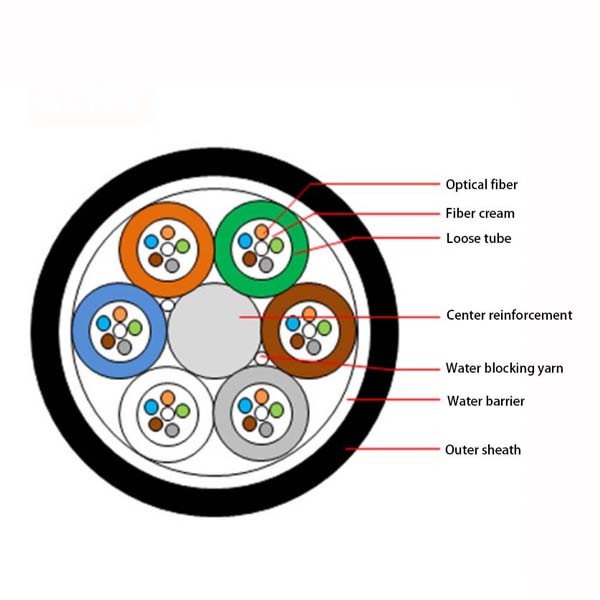

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a HDPE sheath.

Characteristcs:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Single Fiber Reinforced Plastic as the central strength member
7. Loose tube filling compound
8. 100% cable core filling

Properties:

1. Non-mental design can prevent the cable from radio interference and magnetic wave interference
2. Specially designed compact structure is good at preventing loose tubes from shrinking
3. Loose tube filling compound ensure good moisture resistance performance
4. Good flexibility
5. High dense fiber packed,small diameter and light weight; it`s the better option for blowing installation progress.

Product Paramenters

Amount. of fiber	Max. numb. of the fiber per tube	Number of Tube Positions	Number of Active Tubes	*Nom. thickness of sheath	Overall diameter (Approx.)	Weight (Approx.)
				mm	mm	kg/km
24	4	6	6	0.5	6.0±0.5	31
48	12	6	4	0.5	6.0±0.5	31

Fiber Parameter:

Item		Unit	Specification
			G. 652
Mode field diameter	1310nm	mm	8.6±0.4um
	1550nm	mm	9.8±0.8um
Cladding diameter		mm	124.8±0.7 um
Cladding non-circularity		%	≤0.7%
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	242 ± 7
Coating/cladding concentricity error		mm	£12
Cable cut-off wavelength		nm	£ 1260
Attenuation Coefficient	1310nm	dB/km	£0.36
	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Packaging & Shipping

Package Details:

Iron-wooden drum or fumugated wooden drum,normal wooden drum

Drum size can be designed,details will calculation for suitable for containers

Package:

Standard Wooden Drum With Protection
Standard reel length:2/3/4/5km/reel,other length is also available
