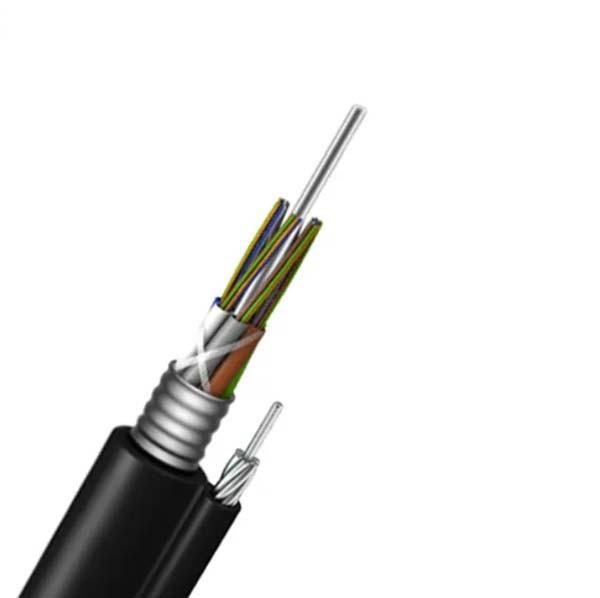

    Outdoor Fiber Optics Cables 8 Core Armored Figure G652D

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYTC8A
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    Outdoor Fiber Optics Cables 8 Core Armored Figure G652D

    8Core Armored Figure 8 G652D Single Mode Optical Fiber Cable For Outdoor

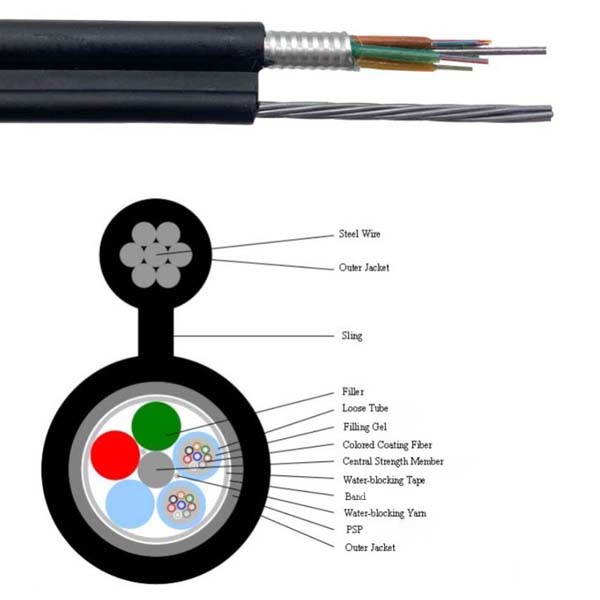

    Description


    1. 250μm Coloured Fiber

    2. PBT loose Tube

    3. Tube Filling Compound(Gel)

    4. APL Moisture barrier

    5. Stranded wires as the self-supporting messenger


    Features

    1. With good mechanical properties and temperature characteristics

    2. Material of loose tube has good hydrolysis resistance and high strength

    3. The loose tube is filled with special gel, which protect the optical fiber

    4. Specially designed compact cable structure to effectively prevent casing from retracting

    5. Anti-UV PE out sheath

    6. Take the following measures to ensure the waterproof performance of the optical cable

    - Single steel wire center reinforced core

    - Filled with special Water-blocking material in loose tube

    - Complete cable core filling

    - Moisture-proof layer of plastic-coated aluminum tape (APL)


    Characteristics


    Good mechanical and temperature performance
    1. High strength loose tube that is hydrolysis resistant
    2. Special tube filling compound ensure a critical protection of fiber
    3. Crush resistance and flexibility
    4. PE/LSZH sheath protects cable from ultraviolet radiation
    5. 100% cable core filling


    Specification

    Outdoor Fiber Optics Cables 8 Core Armored Figure G652D

    Application : self-supporting aerial


    Installation method : self-supporting aerial

    Operating temperature : -40℃ ~ +70℃

    Permisson bent radius

    Static :10 times O.D.

    Dynamic :20 times O.D.

    PerformanceLong-termShort-term
    Max.Tension(N)35007000
    Max.Crushing3001000
    Resistance(N/100mm2)30D(Dynamic)15D(static)
    Storage and operating temperature-40℃ to +70℃

    Optical Characteristics:

    G.652D50/125μm62.5/125μm
    Attenuation (+20℃)@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km
    @1550nm≤0.22 dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength λcc≤1260nm


    Storage and use temperature: -40 °C to +70 °C.
