    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYXTW
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

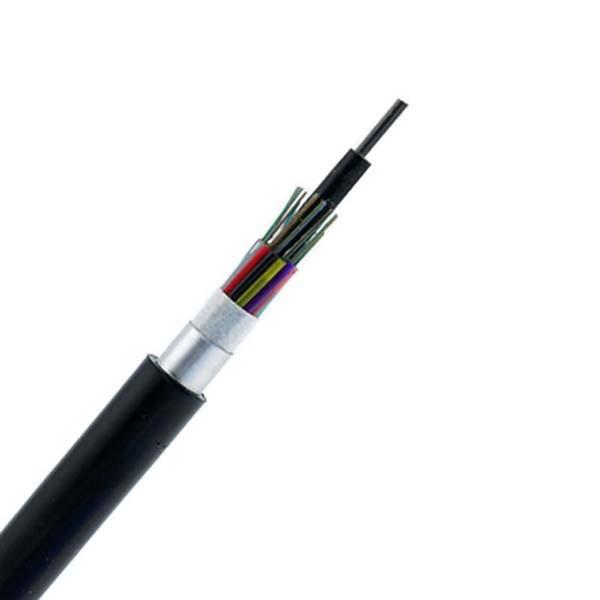

    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm

    GYXTW 12 Core Single mode Light Armored Fiber Optic Cable for outdoor use


    Description


    Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.


    Product Construction


    Fiber:
    2-24 fibers
    Uni-loose tube gel-filled


    Armor:
    Corrugated steel tape


    Strength Member:
    Embedded steel wire


    OuterJacket:
    Black UV-and moisture-resistant polyethylene (PE).


    Features


    Uni-tube gel-filled construction for superior fiber protection.
    CST armorto protect cable from rodentattack and mechanical damage.
    Embedded steel wire provide desirable tensile strength and crush resistance.
    Compact, easy to install.
    UV and moisture-resistantdesign


    Applications


    Installed in duct, direct burial.
    FTTx.


    Cable structure and parameter

    Fiber
    count
    Tube
    diameter

    Steel wire

    diameter

    Sheath thickness
    (nominal*)
    Overall diameter
    (nominal**)
    Weight
    (approx.)
    mmmmmmmmkg/km
    62.51.02.38.473
    123.01.02.38.981

    Performance of Cabled Optical Fiber

    The performance of cabled optical fiber (ITU-T Rec. G.652D)

    ItemSpecification
    Fiber typeSingle mode
    Fiber materialDoped silica
    Attenuation coefficient
    @ 1310 nm
    @ 1383 nm
    @ 1550 nm
    @ 1625 nm

    ≤ 0.36 dB/km
    ≤0.35 dB/km
    ≤0.22 dB/km
    ≤0.25 dB/km
    Point discontinuity≤ 0.05 dB
    Cable cut-off wavelength≤ 1260 nm
    Zero-dispersion wavelength1300 ~ 1324 nm
    Zero-dispersion slope≤0.092 ps/(nm².km)
    Chromatic dispersion
    @ 1288 ~ 1339 nm
    @ 1271 ~ 1360 nm
    @ 1550 nm
    @ 1625 nm

    ≤3.5 ps/(nm. km)
    ≤5.3 ps/(nm. km)
    ≤18 ps/(nm. km)
    ≤22 ps/(nm. km)
    PMD≤0.2 ps/km½
    Mode field diameter @ 1310 nm(8.6~9.5)±0.6 um
    Core / Clad concentricity error≤0.6 um
    Cladding diameter125.0 ± 1 um
    Cladding non-circularity≤1.0%
    Primary coating diameter245 ± 10 um
    Proof test level100 kpsi (=0.69 Gpa), 1%
    Temperature dependence
    0℃~ +70℃ @ 1310 & 1550nm
    ≤ 0.1 dB/km

    Application temperature range

    Operating temperature range-40℃ to +60℃
    Storage / Transport temperature range-40℃ to +60℃
    Installation temperature range-20℃ to +50℃

    Structure


    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm

    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mmGYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm


    Workshop and Quality Test

    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm


    Packing and Delivery

    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm

    GYXTW 12 Core Outdoor Light Armored Fiber Optic Cable Telecom SM 8.0mm
