Product Description:

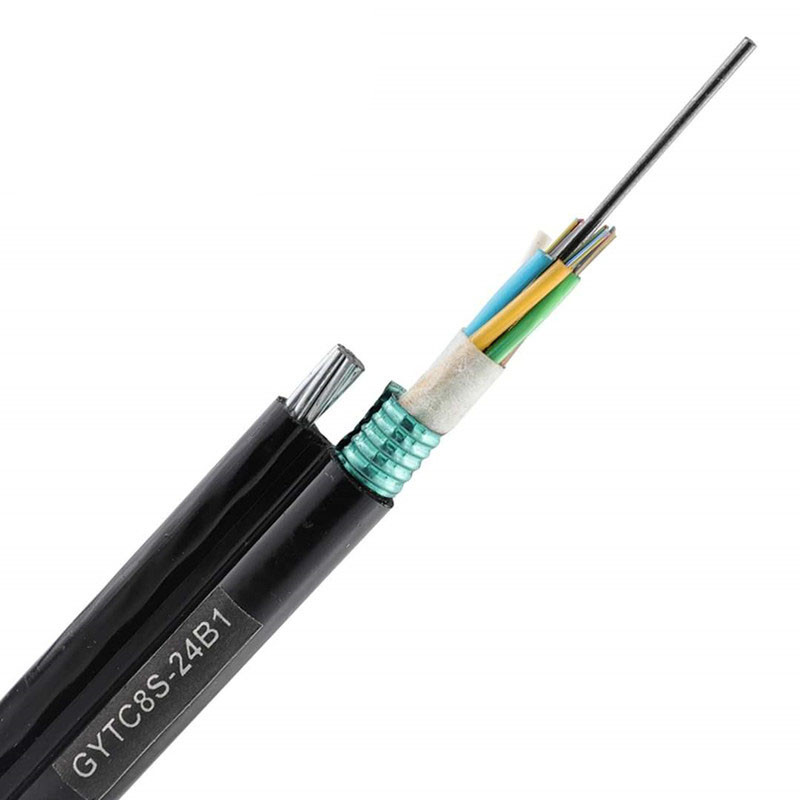

GYTC8S is a type of self-supporting outdoor fiber optic cable,
suitable for aerial applications. It is endowed with features of
high moisture and crush resistance.
Its metal strength member is made up of stranded wires as the
supporting part, which is completed with a Polyethylene (PE) sheath
to form a figure 8 structure. In addition, the cable has an
external Corrugated Steel Tape (CST), which, along with the PE
outer sheath, provides both crush resistance and gun shot
resistance. A central steel-wire strength member, surrounded by a
loose tube and water blocking system, strengthens the tensile
strength and enhances the cable's performance.
The overall geometry and structure of GYTC8S make it a mechanical
and environmental performer of note. Its impact resistant design
allows it to thrive in even the most challenging conditions.
Technical Parameters:
| Property | Value |
|---|
| Application | Outdoor |
| Product Name | Outdoor Self Supporting Fiber Optic Cable |
| Fiber Grade | G652D/ G657A1 |
| Fiber Mode | Single Mode |
| Cable Length | Customized |
| Fiber Count | 2-144 |
| Fiber Type | Optical Fiber |
| Operating Temperature | -40℃~+70℃ |
| Jacket Material | LSZH/HDPE |
Applications:
AITONG Outdoor Fiber Optic Cable is a reliable and high-performance
outdoor cable designed for multiple application and environment.
Its high fiber grade(G652D/G657A1) and fiber count (2-144) ensures
its superior performance and long distance transmission. It also
has excellent mechanical properties, great tensile strength and
resistance to flame, water, and ultraviolet radiation. It is widely
used in various outdoor applications such as overhead, and aerial
installations.
The cable is certifed by ISO9001 and is available with 10KM minimum
order quantity. It is delivered in wooden drum packaging and can be
shipped in as little as 30 days. It has an excellent supply ability
of up to 60KM per month. The payment term is flexible and can be
paid by T/T. It is an ideal choice for indoor or outdoor
application, and is perfect for long distance transmission with its
single mode fiber.
Support and Services:
Our Outdoor Fiber Optic Cable is supported with the following
technical services and support:
- 24/7 customer support
- Installation and repair services
- On-site product training
- Troubleshooting and problem solving
- Product customization
Packing and Shipping:
Outdoor Fiber Optic Cable packaging and shipping involves the use
of special containers that are designed to protect the cables from
various environmental elements. These containers are usually
constructed of high-density polyethylene and come in various sizes
designed to accommodate the length of the cable. Additionally, the
containers come with adjustable straps that allow the cable to be
secured to the sides and/or top of the container to prevent
shifting or damage while in transit. Furthermore, each container is
labeled with the necessary information about the contents and
provided with a tracking label to ensure safe delivery.
FAQ:
Q1: What is the Brand Name of the Outdoor Fiber Optic Cable?
A1: The Brand Name of the Outdoor Fiber Optic Cable is AITONG.
Q2: Where is the Place of Origin of this product?
A2: The Place of Origin of this product is Sichuan, China.
Q3: What is the Certification of this product?
A3: The Certification of this product is ISO 9001.
Q4: What is the Minimum Order Quantity?
A4: The Minimum Order Quantity is 10KM.
Q5: What is the Packaging Details?
A5: The Packaging Details is wooden drum.
Q6: How long is the Delivery Time?
A6: The Delivery Time is 30 days.
Q7: What are the Payment Terms?
A7: The Payment Terms are T/T.
Q8: What is the Supply Ability?
A8: The Supply Ability is 100KM/month.
