FTTH Fiber Optic Cable 1 Core Double Steel KFRP Strength Member

FTTH (Fiber to the home) drop cable, the outer skin is generally black or white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape.

The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm. It is suitable for entering the house by pipe or distribution openly. The unique 8-shaped structure of the drop cable can realize spliting the field end in the shortest time.

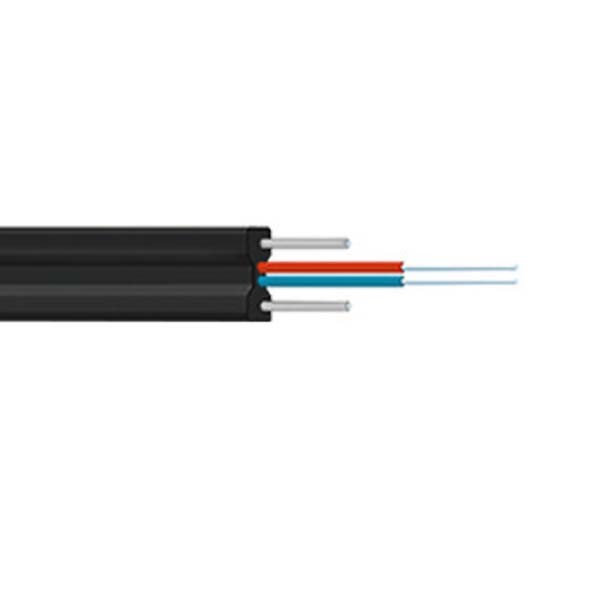

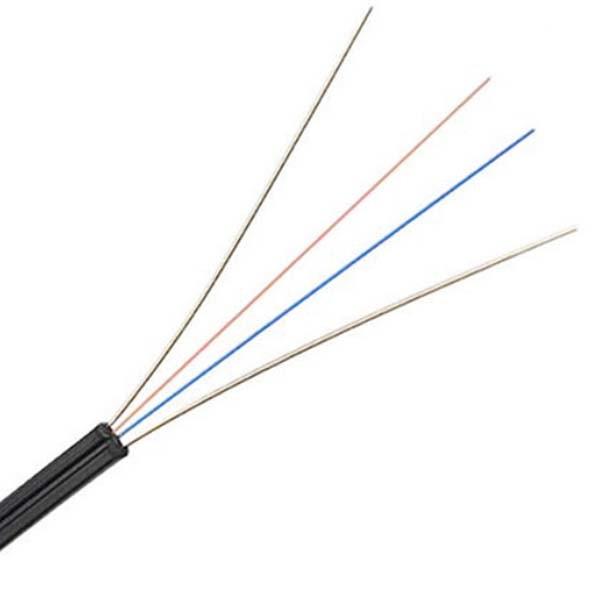

The GJXH cables are adapted to indoor environments, mostly to FTTH installations. The optical fiber is at the center of the cable with two parallel steel wires elements that reinforce the cable. These elements are then surrounded by a sheath made of low-smoke (LSZH) materials, with no halogen and fireproof.

Characteristics

1. Small bending radius and excellent flexibility meet all kinds of indoor wiring environment of optical fiber to the home

2. Small diameter, light weight, practical

3. The structure is simple and reasonable, with good compressive, tensile and aging resistance

4. "8" groove design, easy to peel sheath, simple installation and maintenance

General Specifications:

Fiber Specifications:

Fiber style			Unit	SM G652D	SM G657A1	SM G657A2
condition			nm	1310/1550	1310/1550	1310/1550
attenuation			dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion		1310nm	Ps/(nm*km)	≤18	≤18	≤18
		1550nm	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength			nm	1312±10	1312±10	1300-1324
Zero dispersion slope			ps/(nm²×Km)	≤0.091	≤0.090	≤0.092
PMD Maximum Individual Fiber			[ps/√km]	≤0.2	≤0.2	≤0.2
PMD Design Link Value			ps/(nm²×Km)	≤0.08	≤0.08	≤0.08
Fiber cutoff wavelength λc			nm	≧1180,≤1330	≧1180,≤1330	≧1180,≤1330
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	9.0±0.4	9.8±0.4
	1550nm		um	10.4±0.8	10.1±0.5	9.8±0.5
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.05	≤0.05
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.05	≤0.05
Difference backscatter coefficient			dB/km	≤0.03	≤0.03	≤0.03
Attenuation uniformity			dB/km	≤0.01	≤0.01	≤0.01
Cladding diameter			um	125.0±0.1	124.8±0.1	124.8±0.1
Cladding non-circularity			%	≤1.0	≤0.7	≤0.7
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤0.5	≤0.5
Curl(radius)			um	≥4	≥4	≥4

Cable Design

Item	Description
Model No	GJXH/GJFXH
1. Fiber count	1 Core , 2 Core, 4 Core
2. Cable Diameter	3.0*2.0mm
3. Cable Weight	11.5KGS/9.5KGS
4. Strength member
- Material	Steel/FRP
- Diameter	0.5mm
5. Outer Sheath
- Material	LSZH (Black/white)
6. Sheath marking
- Type of marking	Laser printing
