    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable

    Ask Lasest Price
    Brand Name : Aitong
    Model Number : GYXTW
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/Day
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable


    GYXTW Single Mode Outdoor Duct Aerial Application Light-Armored Cable


    Description


    GYXTW fiber optic cable is made of 250μm optical fiber in a high-modulus material pine sleeve filled with waterproof compound. The loose tubing is wrapped longitudinally with a double-sided plastic coated steel tape (PSP). The water barrier material is added between the steel tape and the loose tubing to ensure compactness and longitudinal water resistance of the fiber optic cable. Two parallel steel wires are placed on both sides and then extruded into a polyethylene sheath to form the cable.


    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable

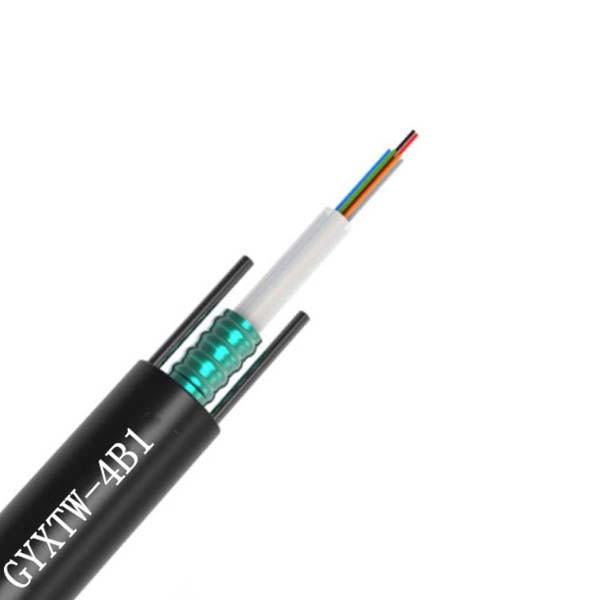

    Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.


    Product Construction

    Fiber2-24 fibers , Uni-loose tube gel-filled
    ArmorCorrugated steel tape (PSP)
    Strength MemberEmbedded steel wire
    OuterJacketBlack UV-and moisture-resistant polyethylene (PE)

    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable


    Features


    1. Uni-tube gel-filled construction for superior fiber protection.
    2. CST armorto protect cable from rodentattack and mechanical damage.
    3. Embedded steel wire provide desirable tensile strength and crush resistance.
    4. Compact, easy to install.
    5. UV and moisture-resistantdesign


    Cable structure and parameter

    Fiber
    count
    Tube
    diameter

    Steel wire

    diameter

    Sheath thickness
    (nominal*)
    Overall diameter
    (nominal**)
    Weight
    (approx.)
    mmmmmmmmkg/km
    62.51.02.38.473
    123.01.02.38.981

    Performance of Cabled Optical Fiber

    The performance of cabled optical fiber (ITU-T Rec. G.652D)

    ItemSpecification
    Fiber typeSingle mode
    Fiber materialDoped silica
    Attenuation coefficient
    @ 1310 nm
    @ 1383 nm
    @ 1550 nm
    @ 1625 nm

    ≤ 0.36 dB/km
    ≤0.35 dB/km
    ≤0.22 dB/km
    ≤0.25 dB/km
    Point discontinuity≤ 0.05 dB
    Cable cut-off wavelength≤ 1260 nm
    Zero-dispersion wavelength1300 ~ 1324 nm
    Zero-dispersion slope≤0.092 ps/(nm².km)
    Chromatic dispersion
    @ 1288 ~ 1339 nm
    @ 1271 ~ 1360 nm
    @ 1550 nm
    @ 1625 nm

    ≤3.5 ps/(nm. km)
    ≤5.3 ps/(nm. km)
    ≤18 ps/(nm. km)
    ≤22 ps/(nm. km)
    PMD≤0.2 ps/km½
    Mode field diameter @ 1310 nm(8.6~9.5)±0.6 um
    Core / Clad concentricity error≤0.6 um
    Cladding diameter125.0 ± 1 um
    Cladding non-circularity≤1.0%
    Primary coating diameter245 ± 10 um
    Proof test level100 kpsi (=0.69 Gpa), 1%
    Temperature dependence
    0℃~ +70℃ @ 1310 & 1550nm
    ≤ 0.1 dB/km

    Application temperature range

    Operating temperature range-40℃ to +60℃
    Storage / Transport temperature range-40℃ to +60℃
    Installation temperature range-20℃ to +50℃

    Workshop and Quality Test

    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable

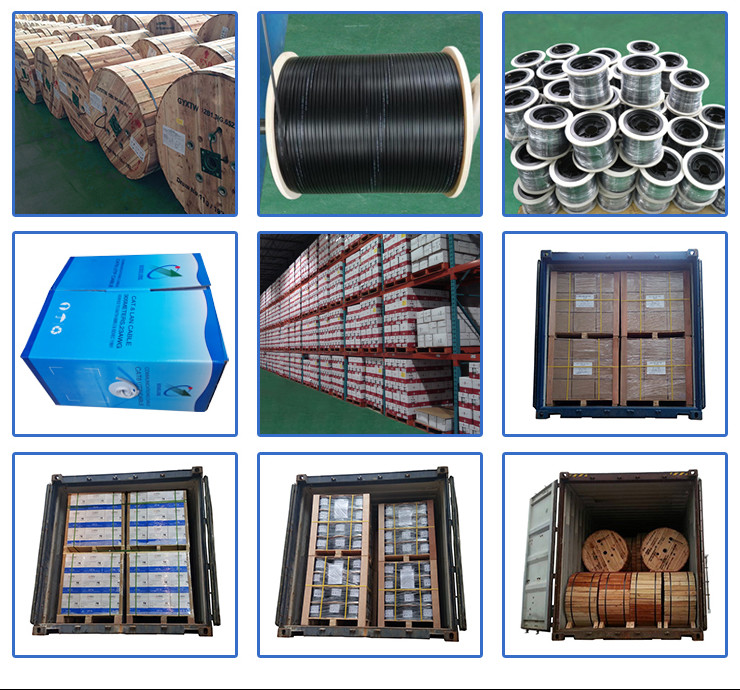

    Packing and Delivery

    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable

    GYXTW Single Mode Outdoor Duct Aerial Application Light Armored Cable
